Product Details:
|
| Name: | Flanged Welding Elbow | Connection: | Welding |
|---|---|---|---|
| Color: | Silvery | Size: | Standard |
| Material: | Galvanized Sheet Or Stainless Steel | Technology:: | Stamping |
| Thickness: | 1mm Or 1.2mm | Shape: | Circular |
| High Light: | dust collection pipe,dust extraction ducting |
||

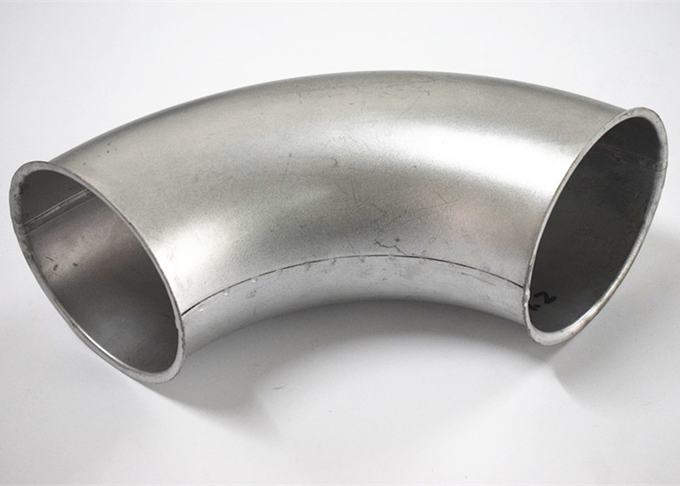

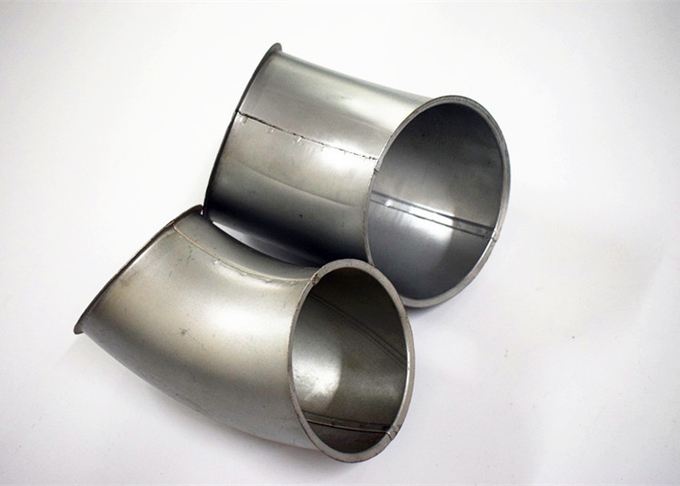

The material of this product we choose galvanized sheet.The welding elbow is used in the ventilation pipe system. We can choose the welding method according to the customer's requirements: spot welding or seam welding.the flanging elbow of galvanized sheet can also be used with our clamp,it is mainly used in ventilation and dedusting system.
Product parameter:
| ɸD | PRODUCT CODE | R | S | |||
| mm | 90° | 60° | 45° | 30° | mm | mm |
| 80 | B8090 | B8060 | B8045 | B8030 | 120 | 1 |
| 100 | B10090 | B10060 | B10045 | B10030 | 150 | 1 |
| 125 | B12590 | B12560 | B12545 | B12530 | 187.5 | 1 |
| 140 | B14090 | B14060 | B14045 | B14030 | 210 | 1 |
| 150 | B15090 | B15060 | B15045 | B15030 | 225 | 1 |
| 160 | B16090 | B16060 | B16045 | B16030 | 240 | 1 |
| 180 | B18090 | B18060 | B18045 | B18030 | 270 | 1 |
| 200 | B20090 | B20060 | B20045 | B20030 | 300 | 1 |
| 225 | B22590 | B22560 | B22545 | B22530 | 337.5 | 1 |
| 250 | B25090 | B25060 | B25045 | B25030 | 375 | 1 |
| 275 | B27590 | B27560 | B27545 | B27530 | 412.5 | 1 |
| 300 | B30090 | B30060 | B30045 | B30030 | 450 | 1 |
Product application:
Piping systems are widely used in industry, construction, and food. Metal pipes and pipe fittings can be produced according to specific applications. The flanged flange facilitates the connection between the two fittings and makes the seal better.
The stamping and welding elbow ventilation pipe products are widely used in the fields of ventilation, purification, dust removal, smoke removal of land, marine and offshore platforms, as well as food factory, grain depot, furniture factory, etc.
Product Feature:
1) The appearance of the product is beautiful.
2) The wind resistance is very small, there is no dust, and the sealing effect is good. It is an updated product of the current dedusting equipment
3) We have complete specifications and angles, 30 °, 45 °, 60 °, 90 °.
4)According to the actual needs of customers to design and develop mold.
5)Product stamping, replacing shrimp elbow.
