Product Details:
|
| Material: | Stainless Steel Or Galvanized Steel | Usage: | Coupling |
|---|---|---|---|
| Standard Or Nonstandard: | Standard | Size: | Customized Sizes Acceptable |
| Application: | Connection | Color: | Blank And Metal |
| Type: | C Type | Function: | Fasterner,Clamping |
| High Light: | heavy duty tube clamps,heavy duty industrial pipe clamps |
||
Pneumatic Conveying Components Metal Pipe Clamps Coupling For Material Transportation
description:
The inner gasket makes the seal between the two pipe segments, with interlocking finger structure which make the coupling air/fine product leakage during the conveying; material could be black rubber (or white silicon).Couplings with stainless steel gasket protectors provide positive gasket protection against abrasion or corrosion with no adverse effect on coupling capabilities.
| size(mm) | pipe clamp | Rubber or Silicone | bolts quantity | nut quantity |
|---|---|---|---|---|
| ø38*100 | stainless steel or customer's require | Rubber or Silicone | 2 | 2 |
| ø51*100 | stainless steel or customer's require | Rubber or Silicone | 3 | 3 |
| ø38*130 | stainless steel or customer's require | Rubber or Silicone | 3 | 3 |
| ø51*130 | stainless steel or customer's require | Rubber or Silicone | 3 | 3 |
| ø63*130 | stainless steel or customer's require | Rubber or Silicone | 3 | |
| ø76*150 | stainless steel or customer's require | Rubber or Silicone | 3 | 3 |
| ø89*150 | stainless steel or customer's require | Rubber or Silicone | 3 | 3 |
| ø102*150 | stainless steel or customer's require | Rubber or Silicone | 3 | 3 |
Feature:
1. Couplings are easy to install.
2. Standard construction is zinc plated steel.
3. Couplings, pipe and tube are also available in stainless steel and aluminum.
4. Gasket materials: black and white rubber, silicone and an extensive range of other materials available.
Tel:+8616631129391
Email:export@ypmachinery.com
Wechat:Amy010086
whatsapp: 86 13739764346

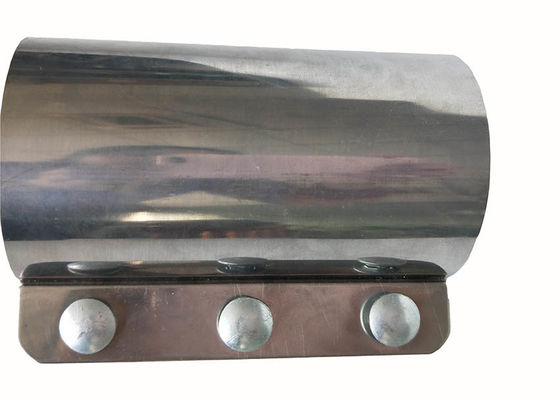

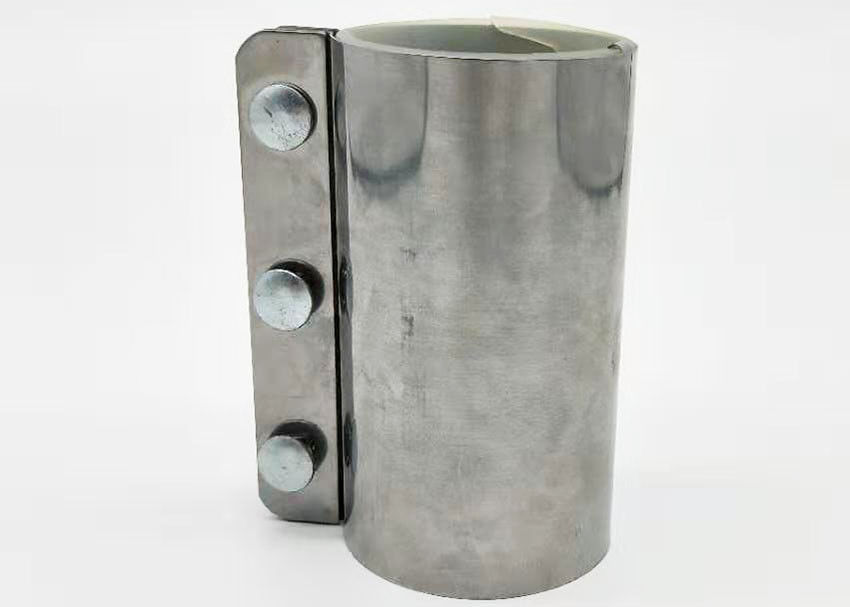

Picture:
Application:
Standard pipe connections use 2-3-bolt compression couplings with an internal gasket and metal grounding strip.Connecting coupling and particle conveying of central material conveying pipeline.
