Groove Design Single Bolt Exhaust Auto Spare Parts V Band Clamp With Flange

China Groove Design Single Bolt Exhaust Auto Spare Parts V Band Clamp With Flange supplier
Groove Design Single Bolt Exhaust Auto Spare Parts V Band Clamp With Flange supplier Groove Design Single Bolt Exhaust Auto Spare Parts V Band Clamp With Flange supplier

Large Image :  Groove Design Single Bolt Exhaust Auto Spare Parts V Band Clamp With Flange

Product Details:

Place of Origin: CHINA
Brand Name: YP
Certification: iso
Model Number: custom

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Packaging Details: we will carefully give our packaging suggestion or packing according to your requirement.
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Product Name: Type V Band Exhaust Clamp Material: Stainless Steel, SS304 Or Other Material
Usage: Heavy Duty Size: 1.5-6 Inch
Application: Exhaust Clamp Shape: Round
Screw Type: Square Structure: T Clamp

Groove Design Single Bolt Exhaust Auto Spare Parts V Band Clamp With Flange

Product Detalls:



If it is a flat flange, a gasket can be placed. If it is a male flange and a female flange, it is not required.The size and material of products can be customized according to the needs of customers. The general material is SS304 or ss306.In production, we strictly control the safety of products and the quality.

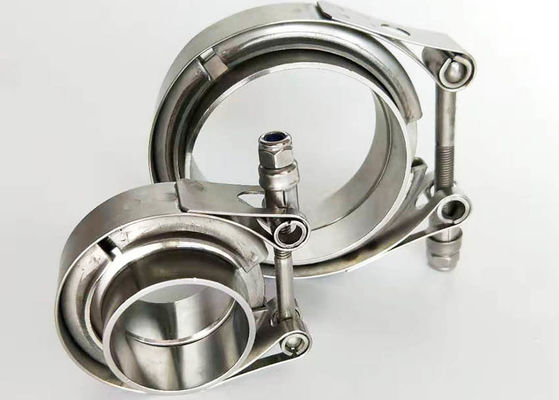

V Band couplings are mechanical connecting clamps consisting of two or more V insert sections welded inside a strong and adjustable clamp. Each assembly consists of two Stainless Steel Male Female flanges and one 304 Stainless Steel V band clamp,providing a perfect overlap seam for welding.The exhaust clamp design allows for a gasket free seal.





size(inch) Flange inner diameter(mm) Outer diameter of exhaust pipe(mm) Material
1.5 38.9 38.1 SS304
1.75 45.3 44.5 SS304
2 51.6 50.8 SS304
2.25 57.9 57.1 SS304
2.5 64.3 63.5 SS304
2.75 70.6 69.8 SS304
3 77 76.2 SS304
3.25 83.3 82.5 SS304
3.5 89.7 88.9 SS304
3.75 96.1 95.6 SS304
4 102.4 101.6 SS304
4.5 115.1 114.3 SS304
5 127.8 127 SS304
6 153.2 152.4 SS304





Features:


Rich configuration on both T Bolt and Nut and match various application even critical like hih temperature, high vibration.



1. Whole stainless steel and resistant to corrosion;
2. Positive sealing integrity;
3. Easy assembly and disassembly;
4. High strength and reliable;
5. Good welding and physical performance .Outer diameter of exhaust pipe

6. Bending by special technology means, it has a unique anti-loosening spring design.

7. After the inner ring is tightened, the hose is rounded to ensure that the hose can hold the hose tightly under elastic deformation and various complex working conditions, with strong sealing.



Application:


The V-Band Clamps/Couplings offer effective fastening solutions in exhaust systems,including filter frame, turbocharging system, exhaust system and industrial application which need flange connection. remove intercooler systems and turbo parts, such as charge piping, intake pipes, diesel engines, turbochargers, and heavy-duty exhaust systems.Etc
