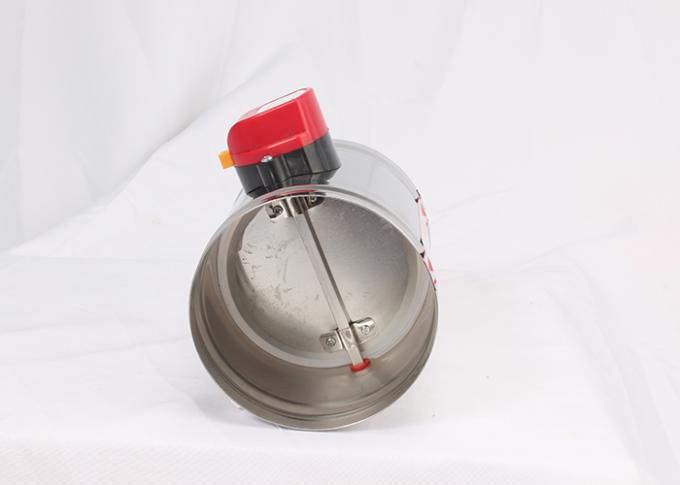

Electric Round Fire Damper Fire Draft Blocker Backdraft Damper Fire And Smoke Damper Actuator
An air damper is a complex mechanism with many moving elements. Their main components are the blades, which adjust their position to control airflow. In addition, dampers include frames, linkages, axles, bearings, seals, blade pins, actuating motors, flanging, jackshafts, and sleeves, among other components.
Electric Air Damper Specifications:
|Commodity||Outer Diameter||Heigh||Flange width||Remark|
|Electric Air Damper||51mm||150mm||25mm||silicone seal|
|Electric Air Damper||63mm||150mm||25mm||silicone seal|
|Electric Air Damper||75mm||150mm||25mm||silicone seal|
|Electric Air Damper||80mm||150mm||25mm||silicone seal|
|Electric Air Damper||100mm||150mm||25mm||silicone seal|
|Electric Air Damper||125mm||190mm||25mm||silicone seal|
|Electric Air Damper||150mm||190mm||25mm||silicone seal|
|Electric Air Damper||200mm||190mm||30mm||silicone seal|
|Electric Air Damper||250mm||240mm||30mm||silicone seal|
|Electric Air Damper||300mm||290mm||30mm||silicone seal|
|Electric Air Damper||350mm||340mm||30mm||silicone seal|
|Electric Air Damper||400mm||390mm||30mm||silicone seal|
Electric Air Damper Feature:
Can be equipped with a temperature controller, can be used with a series of thermostats, automatic switch, so that the controlled environment is effectively controlled, so that energy-saving comfort and no noise.
Both the valve opening and the valve closing need to be energized, and the actuator will automatically shut off after completing an action.
An action time is about 10 seconds.
This damper is suitable for controlling the air volume from full flow to shut off
The damper is constructed with polished stainless steel and come with aluminum valve plate
It can work with thermostat, open and close automatically.
