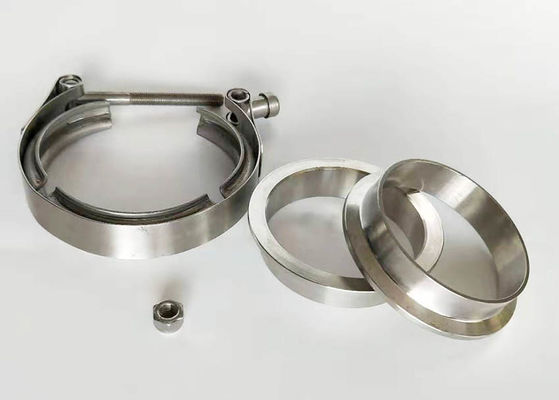

Exhaust System V Bend Heavy Duty Tube Clamps Stainless Steel Spot Welded

China Exhaust System V Bend Heavy Duty Tube Clamps Stainless Steel Spot Welded supplier
Exhaust System V Bend Heavy Duty Tube Clamps Stainless Steel Spot Welded supplier Exhaust System V Bend Heavy Duty Tube Clamps Stainless Steel Spot Welded supplier Exhaust System V Bend Heavy Duty Tube Clamps Stainless Steel Spot Welded supplier

Large Image :  Exhaust System V Bend Heavy Duty Tube Clamps Stainless Steel Spot Welded

Product Details:

Place of Origin: CHINA
Brand Name: YP
Certification: ISO
Model Number: custom

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: we will carefully give our packaging suggestion or packing according to your requirement.
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Product Name: Type V Band Exhaust Clamp Material: Stainless Steel, SS304 Or Other Material
Usage: Heavy Duty Size: 1.5-6 Inch
Application: Exhaust Clamp Shape: Round
Screw Type: Square Structure: T Clamp

Exhaust System V Bend Clamp Stainless Steel Spot Welded Heavy Duty Pipe Clamps 4 inch

Product Detalls:



The turbocharger exhaust tailpipe V-band clamps are intended to couple and retain the exhaust tailpipe to the turbocharger housing, exhaust exit flange.



1. The material choice can be stainless steel 201 or 304.

2. Available with or without flange.

3. Flange selection: flat flange or male female flange.

4. Connection head can be selected: T bolt trunnion or quick release latch.





size(inch) Flange inner diameter(mm) Outer diameter of exhaust pipe(mm) Material
1.5 38.9 38.1 SS304
1.75 45.3 44.5 SS304
2 51.6 50.8 SS304
2.25 57.9 57.1 SS304
2.5 64.3 63.5 SS304
2.75 70.6 69.8 SS304
3 77 76.2 SS304
3.25 83.3 82.5 SS304
3.5 89.7 88.9 SS304
3.75 96.1 95.6 SS304
4 102.4 101.6 SS304
4.5 115.1 114.3 SS304
5 127.8 127 SS304
6 153.2 152.4 SS304





Features:


Rich configuration on both T Bolt and Nut and match various application even critical like hih temperature, high vibration.



1. Whole stainless steel and resistant to corrosion;
2. Positive sealing integrity;
3. Easy assembly and disassembly;
4. High strength and reliable;
5. Good welding and physical performance .Outer diameter of exhaust pipe

6. Bending by special technology means, it has a unique anti-loosening spring design.

7. After the inner ring is tightened, the hose is rounded to ensure that the hose can hold the hose tightly under elastic deformation and various complex working conditions, with strong sealing.

8. Reduces assembly cost, saves time and ease of accessibility.





Application:


The V-Band Clamps/Couplings offer effective fastening solutions in exhaust systems,including filter frame, turbocharging system, exhaust system and industrial application which need flange connection. remove intercooler systems and turbo parts, such as charge piping, intake pipes, diesel engines, turbochargers, and heavy-duty exhaust systems.Etc



We provide a variety of bolt joints, the following are two commonly used types. We can also produce handle switches. Can choose the appropriate switching method according to customer needs. Please tell me the specific requirements and contact us.



Email:export@ypmachinery.com

Wechat:Amy010086

whatsapp: 86 13739764346





Exhaust System V Bend Heavy Duty Tube Clamps Stainless Steel Spot WeldedExhaust System V Bend Heavy Duty Tube Clamps Stainless Steel Spot WeldedExhaust System V Bend Heavy Duty Tube Clamps Stainless Steel Spot Welded





Our Services:


1. Any inquiries will be replied within 24 hours.
2. Professional team.
3. High quality,standard designs,reasonable&competitive price,fast lead time.
4. Faster delivery:Sample will be prepared in 2-3 days.
5. Shipping we have strong cooperation with DHL,TNT,UPS,China Shipping,etc.
6. You can also choose your own shipping forwarder.
