Product Details:
|
| Product Name: | Ductwork Flange Clamps | Materials: | Stainless Steel, Carbon Steel |
|---|---|---|---|
| Diameter: | 80-600mm | Application: | Dust Collection System And Ventilation System |
| Function: | Quick Lock Install Duct Clamp | Surface Treatment: | Zinc Plated |
| Sample: | For Free | Item: | Duct Clamps |
| High Light: | 8 inch quick release pipe clamp,quick release pipe clamp carbon steel,zinc plated quick release pipe clip |
||

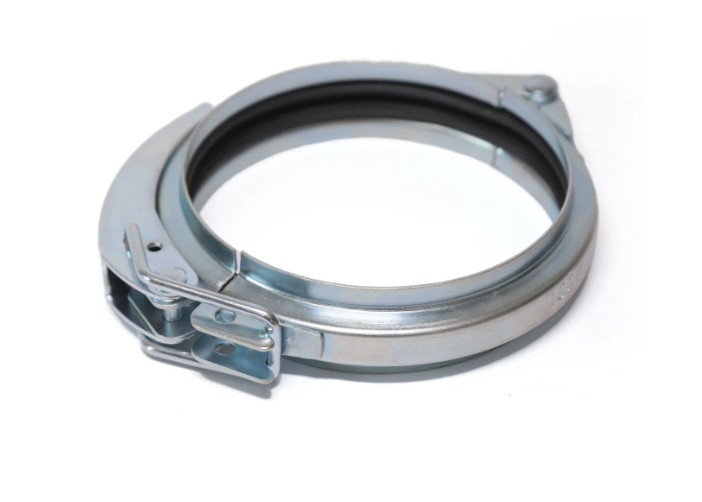

8 Inch Quick Release Duct Hose Clamps Piping Clamps
Introduction of Duct Clamps:
Duct clamps with hinge and handle. It is equipped with an insert specially designed for duct systems made from 1 and 2 mm steel plate. The clamp are zinc plated and used for fast and tight assembly of the duct systems.
We can supply adapters to connect to other systems such as spiral ducting, Nordfab clipped ducting and most other ductwork systems.
Specification of Duct Flange Clamp:
Material: carbon steel, stainless steel 304
Thickness:1.0mm
Diameter:800-600mm, customized sizes are acceptable
Surface: Zinc Pated
Application: used for connect of duct pipe
|
Diameter MM |
PRODUCT CODE |
A MM |
H MM |
THICKNESS MM |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Our advantage:
1, we are factory, can supply you lowest price and best quality
2, we have strong team, professional engineer and sales man, after-sale serive.
3, Before delivery, most products will be inspected to promise customers get qualtiy goods.
4, OEM products are acceptable.
5, except for clamps, we also supply other ductwork fittings.
