Product Details:
|
| Item Name: | Air Duct Quick Release V Band Lock Pipe Clamp | Size Of Clamp: | 80-600mm |
|---|---|---|---|
| Clamp Usage: | Used For Dust Extraction System | Standard Or Nonstandard: | Standard |
| Samples: | Acceptable | Color: | Silver |
| High Light: | 3.15 inch quick release pipe clamp,galvanized quick release pipe clamp,3.15 inch quick release tube clamp |
||

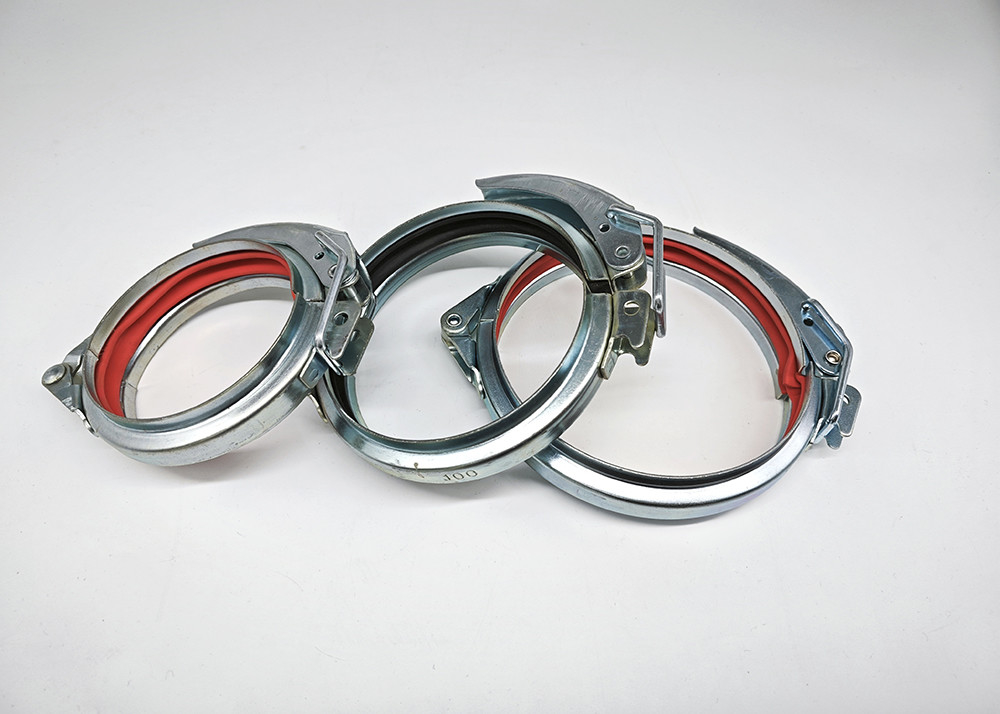

Stainless Steel Galvanized Steel Air Duct Quick Release V Band Lock Pipe Clamp
Introduction of Quick release v band lock pipe clamp:
The duct clamp is a component that uses one kind of pipe special material to hold or hoop another kind of pipe material. It belongs to hardware fasteners. There are two types of clamps, one is the ductwork pipe clamps,and the other is the ventilation pipe clamps
Diameter:80-600mm
Material: stainless steel 304, Carbon Steel
Thickness: 0.8-1.0mm
Feature of quick release pipe clamp:
1.Quick fit & easy disassemble
2.Diameters range from 75 mm upward to 630mm
3.Galvanized or Stainless Steel
4.Suit for hose, rigid ducting, flange, and pipe
Application of duct clamps:
- Joinery wood waste extraction systems and the conveying of powders
- Waste products
- Particle & fume extraction
Specification of Quick Release Pipe Clamps
|
DIAMETER (MM) |
PRODUCT CODE |
A (MM) |
H (MM) |
THICKNESS (MM) |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Package of duct clamps:
About our company:
We are the leading manufacturer and develop a series of round duct & fittings for industy dust collection system of ship and buiding . At the same time, we also supply modular ducting for ventilation system.
Products for Dust collection system including: pressed bend, pneumatic sliding damper, manual sliding damper ,duct clamps, wide/slim pull rings and so on
Products for Ventilation system products including: half elbow, duct reducer, pressed collar saddle, Tee piece and so on.
Our advantage: factory price, fast delivery and good service.
