Product Details:
|
| Item Name: | Ducting System Rapid Pull Ring Edge Quick Release Tube Clips Clamps | Size Of Clamp: | 80mm,100mm,120mm,140mm,150mm,160mm,200mm,250mm,300mm,500mm Etc |
|---|---|---|---|
| Application Of Clamps: | Used For Dust Extraction System | Standard Or Nonstandard: | Standard |
| Samples: | Acceptable | Color: | Silver |
| High Light: | heavy duty pipe clamps 120mm,ducting system heavy duty pipe clamps,120mm heavy duty tube clamps |
||

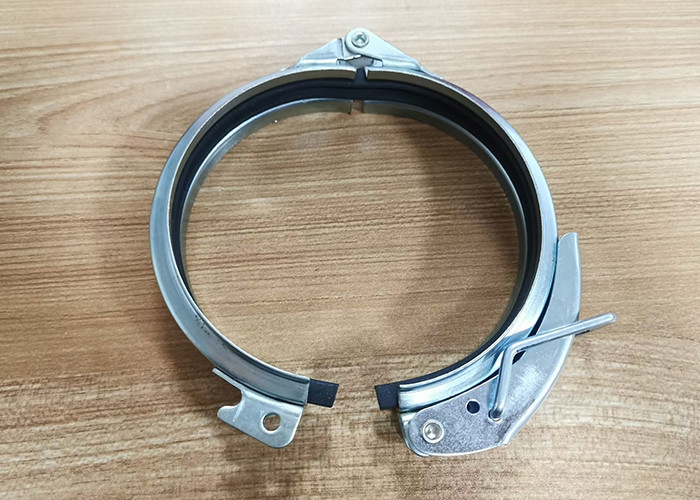

Galvanized Steel Ducting System Rapid Pull Ring Edge Quick Release Tube Clips Clamps
The specification of tube clamps:
| Diameter | 80-600mm |
| Material | stainless steel 304, Carbon Steel |
| Thickness | 1.0mm,1.2mm |
| Surface | Galvanization |
| Feature | 1.Quick fit & easy disassemble 2.Diameters range from 75 mm upward to 630mm 3.Galvanized or Stainless Steel 4.Suit for hose, rigid ducting, flange, and pipe |
| Application | - Joinery wood waste extraction systems and the conveying of powders - Waste products - Particle & fume extraction |
| MOQ | 1 PC |
Specification of Quick Release Pipe Clamps
|
DIAMETER (MM) |
PRODUCT CODE |
A (MM) |
H (MM) |
THICKNESS (MM) |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Package of duct clamps:
FAQ:
1. What is your MOQ?
Our MOQ is usually 10 pieces.
2. What is your delivery time?
The time of delivery is around 20-30 days.
3. What is the shipping port?
We ship the goods via Tianjin Port.
4. What is your payment terms?
We usually accept 30% T/T in advance,70% in the period of shipment. L/C and other payment.
5. What is the location of your company?
Our company is located in the Shijiazhuang City, Hebei Province, China
If you would like to have a visit, you are much welcome.
6. How about the samples?
We could send you the samples,and transport fee should be paid by you.
7. Why choose us?
Genuine products with excellent quality and competitive price；Cooperating with the customers all over the world and knowing the markets very well;After-Services will highly-satisfied.Any problem and feedbacks will be answered in a short of time.
