Product Detail:

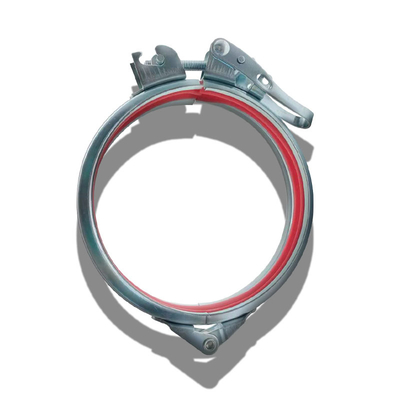

Common accessories for HVAC systems, usually used for connecting pipes. After two flange pipes are docked, they are fastened with clamps, and the bolt in the middle of the clamp is used to adjust the tightness of the diameter.
The reason for not using flange drilling and bolt connection is twofold: on the one hand, it requires separate welding of flanges and drilling of holes to install bolts; on the other hand, the bolt connection method does not have clamps for easy opening and closing, making it easier to clean and disassemble pipelines.
Product Parameters:
1.Pipe Material:galvanized sheet or stainless steel 304
2.Gasket Material: TPE-E/Silicone gasket
3.Clamp Thickness: 1.0mm/1.2mm
4.Clamp width: 28mm
5.Clamp size: 82mm-600mm, size can be customized
6.Keywords:spiral tube clamp/hose clamp/tube clamp/pipe clamp/pipe clips...
7.Package:Carton+pallet/wooden box
| ɸD |
PRODUCT CODE |
A |
H |
Thickness |
| mm |
mm |
mm |
mm |
| 80 |
BMG80 |
28 |
8 |
1 |
| 100 |
BMG100 |
28 |
8 |
1 |
| 120 |
BMG120 |
28 |
8 |
1 |
| 125 |
BMG125 |
28 |
8 |
1 |
| 140 |
BMG140 |
28 |
8 |
1 |
| 150 |
BMG150 |
28 |
8 |
1 |
| 160 |
BMG160 |
28 |
8 |
1 |
| 180 |
BMG180 |
28 |
8 |
1 |
| 200 |
BMG200 |
28 |
8 |
1 |
| 225 |
BMG225 |
28 |
8 |
1 |
| 250 |
BMG250 |
28 |
8 |
1 |
| 275 |
BMG275 |
28 |
8 |
1 |
| 300 |
BMG300 |
28 |
8 |
1 |
| 315 |
BMG315 |
28 |
8 |
1.2 |
| 350 |
BMG350 |
28 |
8 |
1.2 |
| 400 |
BMG400 |
28 |
8 |
1.2 |
| 450 |
BMG450 |
28 |
8 |
1.2 |
| 500 |
BMG500 |
28 |
8 |
1.2 |
| 550 |
BMG550 |
28 |
8 |
1.2 |
| 600 |
BMG600 |
28 |
8 |
1.2 |
Our Factory:
FAQ:
1. who are we?
We are based in Hebei, China,sell to North America(10.00%),Southeast Asia(15.00%),Eastern Europe(30.00%),South America(15.00%),Western Europe(30.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample of Air duct quick release rapid pull ring duct pipe clamp without gasket for 1 mm galvanized steel round pipe system before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HVAC SYSTEM,HVAC pressed air duct bends,Ventilation ducts,Insulation Duct pipe bends,Dust collection flange bends,Air duct quick release rapid pull ring duct pipe clamp without gasket for 1 mm galvanized steel round pipe system and so on.
4. why should you buy from us not from other suppliers?
1.Dedicated attitude and attention on metal-forming industry;
2.Specialized in stamping, casting, forging process;
3.Completed product delivery system;
4.Required products by reasonable cost;
5.Trustworthy business partner, perfect after-sale service!
