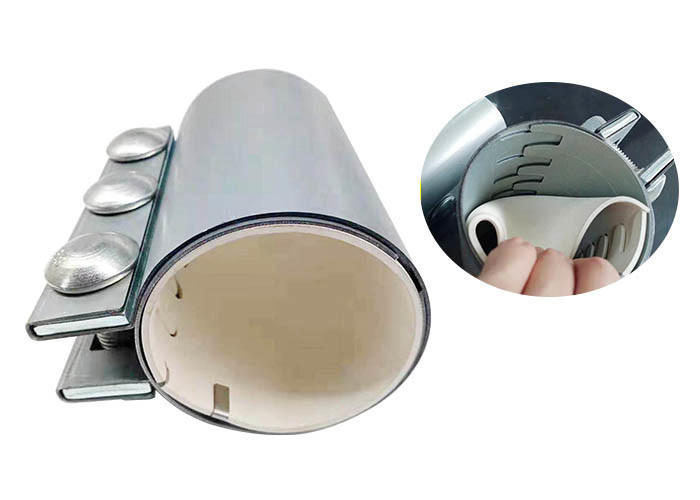

1.5inch 76mm Heavy Bolt Plate Galvanized Pipe Coupling With Neoprene Gasket

1.5inch 76mm Heavy Bolt Plate Galvanized Pipe Coupling With Neoprene Gasket
1.5inch 76mm Heavy Bolt Plate Galvanized Pipe Coupling With Neoprene Gasket

Large Image :  1.5inch 76mm Heavy Bolt Plate Galvanized Pipe Coupling With Neoprene Gasket

Product Details:
Place of Origin: China
Brand Name: WD
Model Number: WD-1201256
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: negotiation
Packaging Details: Standard package wooden cases or cartons or as client`s request.
Delivery Time: 10-35 days According yuor order
Payment Terms: T/T, L/C
Supply Ability: 5000 pcs per month

1.5inch 76mm Heavy Bolt Plate Galvanized Pipe Coupling With Neoprene Gasket

Description
Name Product: 76mm Heavy Bolt Galvanized Plate With Neoprene Gasket Metal Pipe Couplings Size: 1.5-12 Inch
Length: 150mm / 200mm/250mm Payment: TT
Used: Pipe Connection Type Of Shipping: Air / Shipping / Rail
Shell Material: Galvanized Plate Grounding Strip: Galvanized Plate/stainless Steel
Gasket Protector Material: Galvanized Plate/stainless Steel Gasket Material: Nitrile Rubber / Neoprene Or Food Grade
High Light:

1.5inch galvanized pipe coupling

,

neoprene gasket galvanized pipe coupling

,

76mm compression fitting for galvanized pipe

76mm Heavy Bolt Galvanized Plate With Neoprene Gasket Metal Pipe Couplings



Product Detail:

The pipe couplings is used to connect pneumatic conveying pipes and material conveying pipes.This is a heavy-duty pipe couplings, 8.8 grade heavy-duty bolts, and the number of bolts is configured according to the length.The larger the size, the lower the pressure. meet pressure requirements



The material can be selected according to the used to environment (stainless steel / galvanized plate)



  1. Size:  1.5-12 inch .
  2. Length: 150mm/200mm/250mm...
  3. Structure: shell + washer + protective ring + grounding strip + grade 8.8 bolt
  4. OEM:yes
  5. Order quantity: 200pcs
  6. Type: light coupling and heavy coupling
  7. Shell material : galvanized plate
  8. gasket material :Nitrile rubber / Neoprene or food grade
  9.  Protective ring : Galvanized plate or SS304
  10.  Grounding strip / Support plate material :  Galvanized plate or SS304
  11.  Payment : T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight

Product Parament :





size



1.5-12inch



Metal material



Galvanized sheet



Gasket material



Nitrile rubber / Neoprene or food grade



Package



carton box + pallets



Payment



L/C, T/T



Condition



New







































Zinc plate pipe coupling
Size shell material Gasket Bolts quantity Nut Quantity
38*130 Zinc plate Nitrile rubber gasketor customer's require 3 3
51*130 Zinc plate Nitrile rubber gasketor customer's require 3 3
38*130 Zinc plate Nitrile rubber gasketor customer's require 3 3
51*130 Zinc plate Nitrile rubber gasketor customer's require 3 3
63*130 Zinc plate Nitrile rubber gasketor customer's require 3 3
76*150 Zinc plate Nitrile rubber gasketor customer's require 3 3
89*150 Zinc plate Nitrile rubber gasketor customer's require 3 3
102*150 Zinc plate Nitrile rubber gasketor customer's require 3 3


Company Picture :

1.5inch 76mm Heavy Bolt Plate Galvanized Pipe Coupling With Neoprene Gasket 0

Product picture:

The following figure is the product structure diagram:



1.5inch 76mm Heavy Bolt Plate Galvanized Pipe Coupling With Neoprene Gasket 11.5inch 76mm Heavy Bolt Plate Galvanized Pipe Coupling With Neoprene Gasket 2

FAQ :



1. How about the Delivery time?
A. About 5-35 days,according order.
2. Can you produce according to customers' design?
A. Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the
product under your brand name, also the size can be changed as your requirement.

3. What packaging?

Packing: Carton + pallet / wooden box
