Product Details:
|
| Material: | Steel | Surface Treatment: | Galvanized |
|---|---|---|---|
| Size: | 80MM-1250MM | Application: | Connected Pipe Clamp |
| Standerd: | DIN,AMSE | Certification: | ISO9001 |
| Type: | Custom | Shape: | Circle |
| Highlight: | steel pipe flange,split ring flange |
||

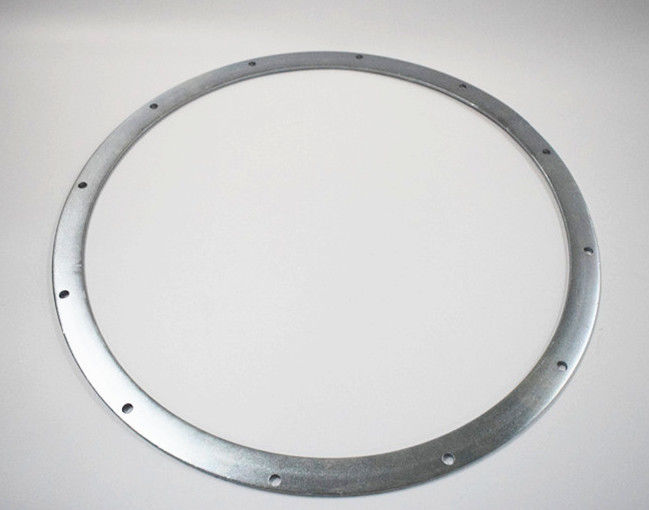

Welding Pipe Stamped Flange Galvanized Sealing Custom Thickness Bolts For Pump
Specification:
| SIZE | PRODUCT | D1 | D2 | D3 | Number | A | S |
| MM | CODE 90º | MM | MM | MM | of holes | MM | MM |
| 80 | YF80 | 83 | 115 | 9.5 | 8 | 25 | 3 |
| 100 | YF100 | 103 | 135 | 9.5 | 8 | 25 | 3 |
| 120 | YF120 | 123 | 155 | 9.5 | 8 | 25 | 3 |
| 125 | YF125 | 128 | 160 | 9.5 | 8 | 25 | 3 |
| 140 | YF140 | 143 | 175 | 9.5 | 8 | 25 | 3 |
| 150 | YF150 | 153 | 185 | 9.5 | 8 | 25 | 5 |
| 160 | YF160 | 163 | 195 | 9.5 | 8 | 25 | 5 |
| 180 | YF180 | 183 | 215 | 9.5 | 8 | 25 | 5 |
| 200 | YF200 | 203 | 235 | 9.5 | 12 | 25 | 5 |
| 225 | YF225 | 228 | 260 | 9.5 | 12 | 25 | 5 |
| 250 | YF250 | 253 | 285 | 9.5 | 12 | 25 | 5 |
| 275 | YF275 | 278 | 310 | 9.5 | 12 | 25 | 5 |
| 300 | YF300 | 304 | 336 | 9.5 | 12 | 25 | 5 |
| 315 | YF315 | 319 | 351 | 9.5 | 12 | 25 | 5 |
| 350 | YF350 | 354 | 389 | 11.5 | 12 | 30 | 6 |
| 400 | YF400 | 405 | 439 | 11.5 | 16 | 30 | 6 |
| 450 | YF450 | 455 | 489 | 11.5 | 16 | 30 | 6 |
| 500 | YF500 | 505 | 540 | 11.5 | 16 | 30 | 6 |
| 550 | YF550 | 555 | 590 | 11.5 | 16 | 30 | 6 |
| 600 | YF600 | 605 | 640 | 11.5 | 16 | 30 | 6 |
| 630 | YF630 | 635 | 670 | 11.5 | 24 | 30 | 6 |
| 650 | YF650 | 655 | 690 | 11.5 | 24 | 30 | 6 |
| 700 | YF700 | 705 | 750 | 11.5 | 24 | 40 | 6 |
| 750 | YF750 | 755 | 800 | 11.5 | 24 | 40 | 6 |
| 800 | YF800 | 805 | 850 | 11.5 | 24 | 40 | 6 |
| 850 | YF850 | 855 | 900 | 11.5 | 24 | 40 | 6 |
| 900 | YF900 | 905 | 950 | 11.5 | 24 | 40 | 6 |
| 950 | YF950 | 955 | 1000 | 11.5 | 24 | 40 | 6 |
| 1000 | YF1000 | 1005 | 1050 | 11.5 | 24 | 40 | 6 |
| 1250 | YF1250 | 1255 | 1300 | 11.5 | 24 | 40 | 6 |
Application:
In pipeline engineering, flanges are mainly used for piping connections. For piping that needs to be connected, all kinds of installation flange, low pressure pipe can use wire flange, 4 kg of pressure using welding flange. Insert the sealing points between the two flanges and tighten them with bolts. Different pressure flanges have different thickness and use different bolts. The water pump and valve, when connected with the pipe, the parts of the equipment are also made of corresponding flange shape, also known as flange connection.
Our Services:
| Consult | Any inquiries will be replied within 24 hours. |
| Serices | Professional team |
| Faster delivery | Sample will be prepared in 2-3 days |
| Shipping | we have strong cooperation with DHL,TNT,UPS,China Shipping,etc You can also choose your own shipping forwarder |
FAQ:
1. What is your MOQ?
Our MOQ is 100 pieces
2. What is your delivery time?
The time of delivery is around 15-20 days.
3. What is the shipping port?
We ship the goods via Tianjin Port.
4. What is your payment terms?
We usually accept 30% T/T in advance,70% in the period of shipment. L/C and other payment.
5. What is the location of your company?
Our company is located in the Shijiazhuang, Hebei Province,China.
If you would like to have a visit, you are much welcome.
6. How about the samples?
We could send you the samples,and transport fee should be paid by you.
7. Why choose us?
Genuine products with excellent quality and competitive price；Cooperating with the customers all over the world and knowing the markets very well;After-Services will highly-satisfied.Any problem and feedbacks will be answered in a short of time.
