Product Details:
|
| Product Name: | Type V Band Exhaust Clamp | Material: | Stainless Steel, SS304 Or Other Material |
|---|---|---|---|
| Usage: | Heavy Duty | Size: | 1.5-6 Inch |
| Application: | Exhaust Clamp | Shape: | Round |
| Screw Type: | Square | Structure: | T Clamp |
| Highlight: | heavy duty tube clamps,heavy duty industrial pipe clamps |
||
Product Detalls:

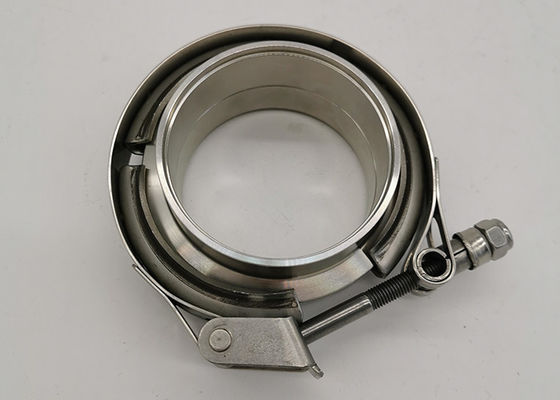

The turbocharger exhaust tailpipe V-band clamps are intended to couple and retain the exhaust tailpipe to the turbocharger housing, exhaust exit flange.
1. The material choice can be stainless steel 201 or 304.
2. Available with or without flange.
3. Flange selection: flat flange or male female flange.
4. Connection head can be selected: T bolt trunnion or quick release latch.
| size(inch) | Flange inner diameter(mm) | Outer diameter of exhaust pipe(mm) | Material |
| 1.5 | 38.9 | 38.1 | SS304 |
| 1.75 | 45.3 | 44.5 | SS304 |
| 2 | 51.6 | 50.8 | SS304 |
| 2.25 | 57.9 | 57.1 | SS304 |
| 2.5 | 64.3 | 63.5 | SS304 |
| 2.75 | 70.6 | 69.8 | SS304 |
| 3 | 77 | 76.2 | SS304 |
| 3.25 | 83.3 | 82.5 | SS304 |
| 3.5 | 89.7 | 88.9 | SS304 |
| 3.75 | 96.1 | 95.6 | SS304 |
| 4 | 102.4 | 101.6 | SS304 |
| 4.5 | 115.1 | 114.3 | SS304 |
| 5 | 127.8 | 127 | SS304 |
| 6 | 153.2 | 152.4 | SS304 |
Features:
Rich configuration on both T Bolt and Nut and match various application even critical like hih temperature, high vibration.
1. Whole stainless steel and resistant to corrosion;
2. Positive sealing integrity;
3. Easy assembly and disassembly;
4. High strength and reliable;
5. Good welding and physical performance .Outer diameter of exhaust pipe
6. Bending by special technology means, it has a unique anti-loosening spring design.
7. After the inner ring is tightened, the hose is rounded to ensure that the hose can hold the hose tightly under elastic deformation and various complex working conditions, with strong sealing.
8. Reduces assembly cost, saves time and ease of accessibility.
Application:
The V-Band Clamps/Couplings offer effective fastening solutions in exhaust systems,including filter frame, turbocharging system, exhaust system and industrial application which need flange connection. remove intercooler systems and turbo parts, such as charge piping, intake pipes, diesel engines, turbochargers, and heavy-duty exhaust systems.Etc
We provide a variety of bolt joints, the following are two commonly used types. We can also produce handle switches. Can choose the appropriate switching method according to customer needs. Please tell me the specific requirements and contact us.
