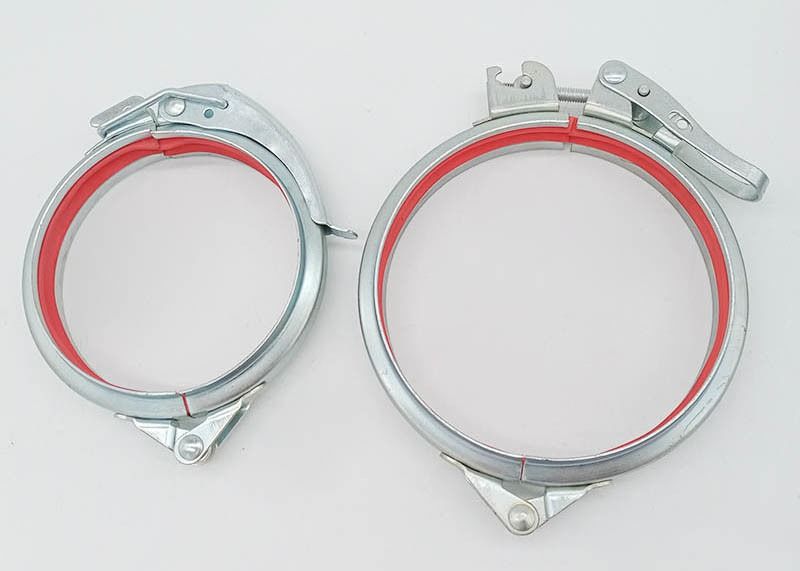

Air Duct Galvanized Steel 250mm Quick Release Pipe Clamp With Seal

Air Duct Galvanized Steel 250mm Quick Release Pipe Clamp With Seal
Air Duct Galvanized Steel 250mm Quick Release Pipe Clamp With Seal

Large Image :  Air Duct Galvanized Steel 250mm Quick Release Pipe Clamp With Seal

Product Details:
Place of Origin: Hebei of China
Brand Name: RM
Certification: ISO 90001
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: USD/1.25-1.20/Pcs
Packaging Details: Wooden Case/Pallet,
Delivery Time: 25 Days
Payment Terms: T/T, L/C
Supply Ability: 10000/Pcs/Month

Air Duct Galvanized Steel 250mm Quick Release Pipe Clamp With Seal

Description
Commodity: Hose Clamps Materials: Carbon Steel
Surface: Zinc Plated Diameter: 80-600mm
Type: Quick Release Pipe Clamp Technics: Deepdrawing-Welding
High Light:

galvanised quick release duct clamp

,

galvanised quick release clamps

,

quick release duct clamp galvanized

250mm Air Duct Quick Release Hose Clamps Galvanized Steel with seal



  1.  Product diameter:80mm~600mm,the diameter also under the clients request to product.
  2.  Product Thickness:1mm~1.2mm,there are thickness of product as per size.
  3.  Inner Rubber Color:Custom,we can provide various colar of rubber for customer
  4.  Outer Thickness:28mm,the outer thickness use the uniform size 28mm
  5.  Height:8mm,the size of higness is 8mm
  6.  Used:the product used by Connect Pipe
  7.  Procedure:Deepdrawing-Welding

Quick Release Pipe Clamps:

Air Duct Galvanized Steel 250mm Quick Release Pipe Clamp With Seal 0

DIAMETER

(MM)

PRODUCT CODE

A

(MM)

H

(MM)

THICKNESS

(MM)

80 BMG80 28 8 1
100 BMG100 28 8 1
120 BMG120 28 8 1
125 BMG125 28 8 1
140 BMG140 28 8 1
150 BMG150 28 8 1
160 BMG160 28 8 1
180 BMG160 28 8 1
200 BMG200 28 8 1
225 BMG225 28 8 1
250 BMG225 28 8 1
275 BMG275 28 8 1
300 BMG300 28 8 1
315 BMG315 28 8 1.2
330 BMG330 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2



Duct clamps with adjustable handle:

Air Duct Galvanized Steel 250mm Quick Release Pipe Clamp With Seal 1



DIAMETER

(MM)

PRODUCT CODE

A

(MM)

H

(MM)

THICKNESS

(MM)

80 LMG80 28 8 1
100 LMG100 28 8 1
120 LMG120 28 8 1
125 LMG125 28 8 1
140 LMG140 28 8 1
150 LMG150 28 8 1
160 LMG160 28 8 1
180 LMG160 28 8 1
200 LMG200 28 8 1
225 LMG225 28 8 1
250 LMG225 28 8 1
275 LMG275 28 8 1
300 LMG300 28 8 1
315 LMG315 28 8 1.2
330 LMG330 28 8 1.2
350 LMG350 28 8 1.2
400 LMG400 28 8 1.2
450 LMG450 28 8 1.2
500 LMG500 28 8 1.2
550 LMG550 28 8 1.2
600 LMG600 28 8 1.2



Details of Duct Clamps:

Air Duct Galvanized Steel 250mm Quick Release Pipe Clamp With Seal 2

Package of duct clamps:

Air Duct Galvanized Steel 250mm Quick Release Pipe Clamp With Seal 3
