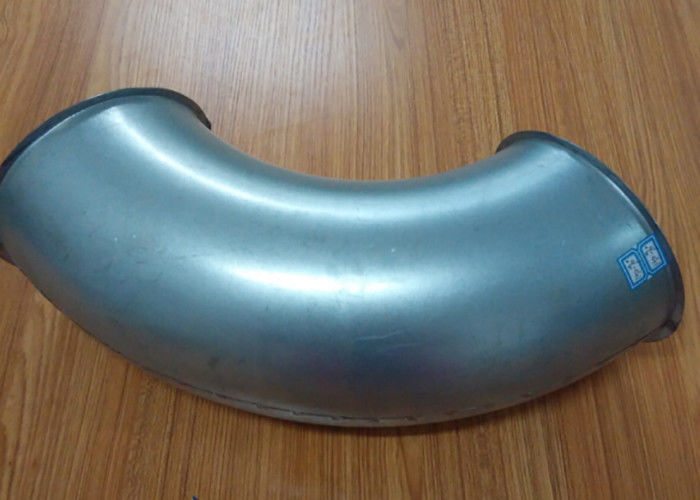

225-90 Deep Drawn 300mm Duct Bends Galvanized Steel

225-90 Deep Drawn 300mm Duct Bends Galvanized Steel
225-90 Deep Drawn 300mm Duct Bends Galvanized Steel

Large Image :  225-90 Deep Drawn 300mm Duct Bends Galvanized Steel

Product Details:
Place of Origin: China
Brand Name: WD
Certification: ISO
Model Number: B22590
Payment & Shipping Terms:
Minimum Order Quantity: 50 units
Price: USD 2.5-6.8/unit
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 50000 units per month

225-90 Deep Drawn 300mm Duct Bends Galvanized Steel

Description
Application: Dust And Fume Extraction Thickness: 1mm
Diameter: 80-300mm Connection Type: Clamps
High Light:

300mm fume extraction Bends

,

Galvanised fume Bends

,

fume extraction bends 300mm

225-90 Dust Extraction Pipe Deep Drawn Duct Bends Galvanized Steel

Keywords: Pressed bends , elbows, ventilation ducts parts

our pressed bends in standard sizes up to 300mm diameter are smooth, pressed bends for efficient flow, reduced pressure loss, and elimination of blockages. Radius is 1.5 x Diameter. The bends are available in 90°, 60°, 45°, 30°.



Features:
-quick assembly
- factory fitted seal with no loose fittings
-can be twisted and adjusted, but has no effect on the gas tighteness
-installation without sealant or solvents
-can be used in all kinds of climates
-the gas tighteness can keep good from 5000 Pa negtive pressure to 3000 Pa positive pressure
-both ends of the fittings are disposed with the process of turnup, which makes both ends smooth, reinforced and also underformed.

The specifications of pressed bends:


¢D

MM

90º 60º 45º 30º

R

MM

S
MM

80 B8090 B8060 B8045 B8030 120 1
100 B10090 B10060 B10045 B10030 150 1
125 B12590 B12560 B12545 B12530 187.5 1
140 B14090 B14060 B14045 B14030 210 1
150 B15090 B15060 B15045 B15030 225 1
160 B16090 B15060 B15045 B15030 240 1
180 B18090 B18060 B18045 B18030 270 1
200 B20090 B20060 B20045 B20030 300 1
225 B22590 B22560 B22545 B22530 337.5 1
250 B25090 B25060 B25045 B25030 375 1
275 B27590 B27560 B27545 B27530 412.5 1
300 B30090 B30060 B30045 B30030 450 1



225-90 Deep Drawn 300mm Duct Bends Galvanized Steel 0

Other related ductwork pipe fittings: duct clamps, blast gate, air damper, reducer, flanges



225-90 Deep Drawn 300mm Duct Bends Galvanized Steel 1
