Product Details:
|
| Color: | Metal | Product Name: | Singe Bolt Wide Pipe Clamp |
|---|---|---|---|
| Material: | Carbon Steel | Surface Treatment: | Galvanized |
| Used: | Round Duct Fittings | Link: | Flange Pipe |
| Highlight: | 300mm heavy duty pipe clamps,0.8mm Heavy Duty Pipe Clamps,48mm heavy duty pipe hangers |
||

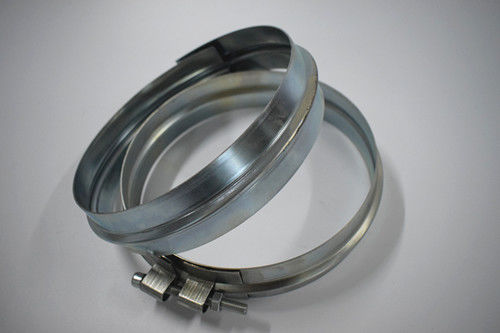

It is a kind of flange air duct clamp which is suitable for circular air duct connection. It is composed of air duct, hoop, locking mechanism and V-shaped sealing ring-The utility model has no protruding flange mechanism.
The utility model uses the arc shape of the hoop to wrap the convex edge of the air duct end. The connection is tight and the sealing effect is good, which is convenient and practical. It is used in the connection of round air duct. It is the renewal product of angle iron round flange, and has the incomparable advantages of angle iron round flange.
product parameter:
| Name | Size | Wide | Thickness |
| V type clamp | 100 | 48 | 0.8 |
| V type clamp | 125 | 48 | 0.8 |
| V type clamp | 150 | 48 | 0.8 |
| V type clamp | 180 | 48 | 0.8 |
| V type clamp | 200 | 48 | 0.8 |
| V type clamp | 220 | 48 | 0.8 |
| V type clamp | 250 | 48 | 0.8 |
| V type clamp | 275 | 48 | 0.8 |
| V type clamp | 300 | 48 | 0.8 |
| V type clamp | 350 | 48 | 1.0 |
| V type clamp | 400 | 48 | 1.0 |
| V type clamp | 450 | 48 | 1.0 |
| V type clamp | 500 | 48 | 1.0 |
| V type clamp | 550 | 48 | 1.0 |
| V type clamp | ... | ... | ... |
Our product line, galvanized steel duct elbow.
