Product Details:
|
| Name: | 200mm Galvanized Duct Clamp Used In Dust Extraction System | Usage: | Dust Collection System |
|---|---|---|---|
| Material: | Q235 | Technics: | Deepdrawing-Welding |
| High Light: | 200mm galvanised tube clamps,OEM galvanised tube clamps,dust extraction galvanised tube clamps |
||

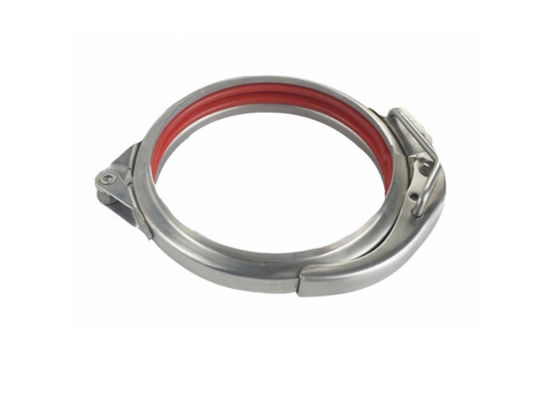

200mm Galvanized Duct Clamp Used In Dust Extraction System
Duct clamps specification:
| D MM | PRODUCT CODE | A MM | H MM | THICKNESS MM |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Application: Clamp is the most important component of Quick System ventilation installations. It is used to connect two components - ventilation pipes or fittings of circular cross-section.
Feature: Simple operation,good stability, quick release pipe clamp
