Product Details:
|
| Product Name: | Stainless Steel Piping Coupling Tool Pipe Clamp With Rubber Seal , Handle Tube Wall Holder Bracket | Condition: | New |
|---|---|---|---|
| Material: | Stainless Steel 304 | Packging: | Carton + Pallet / Wooden Box |
| Size: | 80-500mm Or Other Size You Need | Usage: | Ductwork / Flange Pipe |
| Type: | Handle | Seal Ring Material: | TPE-E |
| Clamp Width: | 28mm | Customized: | OEM / ODM |
| Application: | Construction Area | Gasket: | YES |
| High Light: | 80mm quick release pipe clip,rubber seal quick release pipe clip,2 inch quick release pipe clamp |
||

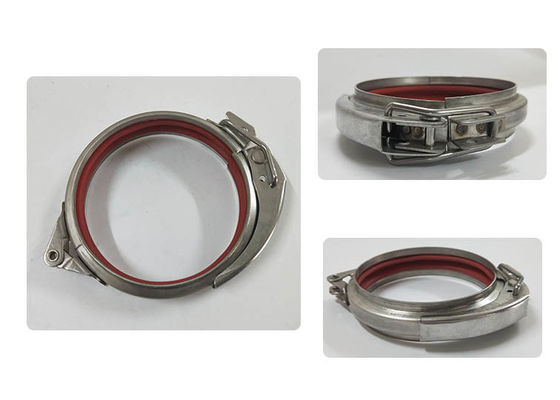

Stainless Steel Piping Coupling Tool Pipe Clamp With Rubber Seal , Handle Tube Wall Holder Bracket
The quick connect clamp in conjunction with the rolled ends or straight ends on components allow quick and easy installation or disassembly. The gasket (optional)offer an unbeatable solution for oil mist and cutting fluid application as well as all other general purpose dust extraction duties. In addition to welded seams, bends, branches, reducers and all other components that have either a spot welded or full welded.
Product Features:
We support customized clamps, and customers provide drawings or samples. We will customize the production according to the information provided. Because we have experienced engineers and skilled production personnel
The material of the tube clamp is stainless steel 304 and there is no surface treatment.
The material of the inner sealing rubber ring is TPE-E. The normal working temperature is -60°C to 80°C.
If you need to work at high temperature, you can replace the sealing ring (EPDM or silicone sealing ring)
| Pipe clamp material | Stainless steel 304 |
| Production cycle | About 15 day |
| Type | Handle and bolt |
| OEM/ODM | Yes |
| Payment | T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight |
Product Parament:
| ɸD | PRODUCT CODE | A | H | Thickness |
| mm | mm | mm | mm | |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG180 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG250 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1 |
| 350 | BMG350 | 28 | 8 | 1 |
| 400 | BMG400 | 28 | 8 | 1 |
| 450 | BMG450 | 28 | 8 | 1 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
