Product Details:
|
| Product Name: | Galvanized Carbon Steel | Condition: | New |
|---|---|---|---|
| Material: | Carbon Steel | Packging: | Carton + Pallet / Wooden Box |
| Size: | 80-600mm | Usage: | Ductwork |
| Place Of Origin: | Hebei, China | Seal Ring Material: | TPE-E / EPDM/Silicone |
| Finish: | Electro-galvanized | Color: | Silver |
| Weight: | According To Size And Quantity | Gasket: | YES |
| Highlight: | lock red rubber galvanized pipe clamp,quick release galv pipe clamps,gasket 2 inch galvanized pipe clamps |
||

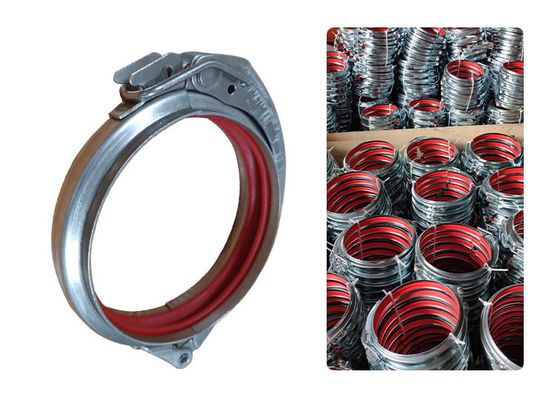

High Temperature Resistance Stainless Steel Quick Release Pipe Clamp With Lock And Red Rubber
Product Features:
The hose clamp is an indispensable HVAC ducting accessories.The stripe material and screw material of it can be in galvanized steel or stainless steel, both of which is corrosion resistant and heat resistant. This hose clamp is widely used for different flexible ducts, so it is also called flexible hose clamp. When connecting the flexible duct with the blower, or exhaust pipe, the hose clamp can securely fix it on the connection parts.
Easily slips over the flange ends of tube clamp components, securing them in place and providing an air-tight seal. Required for any clamp duct connection point. Includes convenient locking pin.We are equipped with a pin for each clamp.
We support customized clamps, and customers provide drawings or samples. We will customize the production according to the information provided. Because we have experienced engineers and skilled production personnel
| Material | Galvanized steel or stainless steel 304 |
| Standard or Nonstard | Standard |
| Gasket | YES |
| OEM/ODM | YES |
| Payment | T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight |
Product Parament:
Material :Carbon steel
| ɸD | PRODUCT CODE | A | H | Thickness |
| mm | mm | mm | mm | |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG180 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG250 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1 |
| 350 | BMG350 | 28 | 8 | 1 |
| 400 | BMG400 | 28 | 8 | 1 |
| 450 | BMG450 | 28 | 8 | 1 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
