Product Details:
|
| Features: | Fast And Secure Installation | Commodity: | Quick Release Hose Clamps |
|---|---|---|---|
| Material: | Carbon Steel | Diameter: | 80-600mm |
| Surface Treatment: | Zinc Plated | Apply For: | Dust Collection System |
| High Light: | quick release galvanised pipe clamps,125mm galvanized pipe repair clamp,quick release galvanized pipe repair clamp |
||

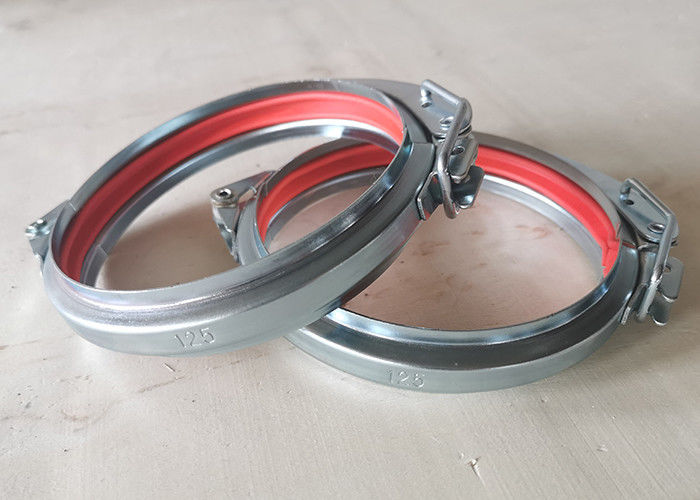

125mm Air Duct Quick Release Hose Clamps With Rubber
Introduction of Quick Release Hose Clamps:
Hose clamps are the most important component of Quick System ventilation installations. It is used to connect two components - ventilation pipes or fittings of circular cross-section. Pipe and fittings have a flanged edge at a height of 5-7 mm at 90 degrees angle.
| Product name | Quick Release Hose Clamps |
| Material | Carbon Steel, Stainless Steel |
| Diameter | 80-600mm |
| Application | Dust Collection System |
| Feature | Easy to install |
| Sample | For free |
| D MM | PRODUCT CODE | A MM | H MM | THICKNESS MM |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
About our company:
We are the leading manufacturer and develop a series of round duct & fittings for industy dust collection system of ship and buiding . At the same time, we also supply modular ducting for ventilation system.
Products for Dust collection system including: pressed bend, pneumatic sliding damper, manual sliding damper ,duct clamps, wide/slim pull rings and so on
Products for Ventilation system products including: half elbow, duct reducer, pressed collar saddle, Tee piece and so on.
Our advantage: factory price, fast delivery and good service.
