Product Details:
|
| Name: | 150mm Two Parts Clamping Ring With Seal Galvanized Pipe Clamp | Material: | Stainless Steel Or Galvanized Iron |
|---|---|---|---|
| Usage: | Conveying Pipe Systems For Bulk Goods Handling | Standard Or Nonstandard: | Standard Or NonStandard |
| Application: | Connection,Industrial | Type: | Square,HVAC,and Etc,American Type; German Type; British Type; T Bolt |
| Color: | Zn Plated | Surface Treatment: | Galvenized |
| OEM: | YES | Keywords: | Clamping Ring On Seal , Pipe Clamp , Quick Connect Pull Ring |
| Highlight: | t bolt galvanized steel hose clamp,150mm galvanized steel hose clamp,6 inch galvanized pipe clamp |
||

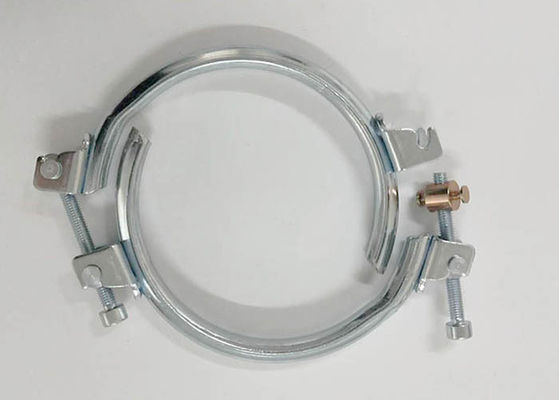

150mm Two Parts Clamping Ring With Seal Galvanized Pipe Clamp
Product Detail:
Used the connection of 90° flanged metal pipes of two pipe sections, clamp the sealing ring on one end of the pipe.simply position the first half of the pull ring align. the pipe and apply the second half tighten the screws done. we’ve used the quick connect pull ring quick connect makes assembly and disassembly for inspection and maintenance even easier .this reduces both downtimes and assembly costs. it’s simple turn the lever and tighten a screw done ,and it’s even shock explosion-proof up to 3 bar .the pull rings are made in China.whether you need to transport food pharmaceuticals chemical products extract dust oil mist the pull ring system is suitable for any application.
Product Features:
We support customized clamps, and customers provide drawings or samples. We will customize the production according to the information provided. Because we have experienced engineers and skilled production personnel
| Material | galvanized steel |
| Production cycle | About 25-45 day |
| Type | Handle and bolt |
| OEM/ODM | Yes |
| Payment | T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight |
Product Parament:
| ɸD | PRODUCT CODE | A | H | Thickness |
| mm | mm | mm | mm | |
| 100 | WA100 | |||
| 120 | BMG100 | 28 | 8 | |
| 140 | BMG120 | 28 | 8 | 1 |
| 150 | BMG125 | 28 | 8 | 1 |
| 160 | BMG140 | 28 | 8 | 1 |
| 180 | BMG150 | 28 | 8 | 1 |
| 200 | BMG160 | 28 | 8 | 1 |
| 225 | BMG180 | 28 | 8 | 1 |
| 250 | BMG200 | 28 | 8 | 1 |
| 275 | BMG225 | 28 | 8 | 1 |
| 300 | BMG250 | 28 | 8 | 1 |
| 350 | BMG275 | 28 | 8 | 1 |
| 400 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1 |
| 350 | BMG350 | 28 | 8 | 1 |
| 400 | BMG400 | 28 | 8 | 1 |
