Product Details:
|
| Product Name: | 100mm Staibless Steel 304 Quick Connect Pipe Clamp With Lock For Flange Pipe And Tube Bends Pipe Clamp | Material: | Stainless Steel 304 |
|---|---|---|---|
| Packging: | Carton + Pallet / Wooden Box | Size: | 80-600mm |
| Usage: | Ductwork | Type: | Handle |
| Seal Ring Material: | TPE-E / EPDM/Silicone | Clamp Width: | 28mm |
| OEM: | LOGO And Size | Adjustable: | Yes |
| High Light: | 4inch quick release pipe clamp,ductwork quick release pipe clamp,galvanised 4 quick release hose clamp |
||

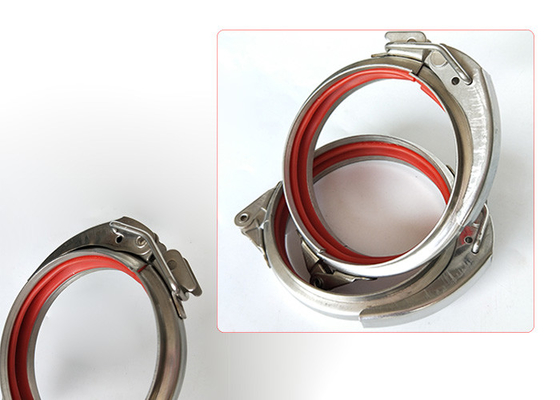

100mm Staibless Steel 304 Quick Connect Pipe Clamp With Lock For Flange Pipe And Tube Bends Pipe Clamp
Product Detail:
Dust extraction pipe system galvanized steel quick release clamp rapid lock duct ring with red gasket ,The use of quick release clamping ring creates a sealed joint and reduces installation time to almost half that of conventional methods of ducting. It provide optimal protection for pipe applications. The lever mechanism designs are for applications where joints need to be closed and released frequently and quickly. The red rubber ring plays the role of sealing. The duct clamp is made of mild steel or carbon steel with zinc plated, so the anti-corrosion is very high.
Product Features:
1. We are equipped with a pin for each clamp.
2. Materials can be selected, such as stainless steel 316/201, etc
3. Support logo on products
4. Quick and convenient installation
5. The material of the sealing ring can be changed according to customer needs
6. Products of non-standard sizes can be customized
7. The drawings or samples provided by customers can be customized for production
| Material | Stainless steel 304 |
| Production cycle | About 15 day |
| Type | Handle and bolt |
| OEM/ODM | Yes |
| Payment | T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight |
Product Parament:
| ɸD | PRODUCT CODE | A | H | Thickness |
| mm | mm | mm | mm | |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG180 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG250 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1 |
| 350 | BMG350 | 28 | 8 | 1 |
| 400 | BMG400 | 28 | 8 | 1 |
| 450 | BMG450 | 28 | 8 | 1 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
