Product Details:
|
| Product Name: | Quick Fit Duct Clips | Dimension: | 80mm~600mm |
|---|---|---|---|
| Material: | Carbon Steel,Stainless Steel 304 | Seal: | Yes |
| Application: | Connecting The Pipe Of Dust | Processing: | Deepdrawing-Welding |
| OEM Service: | Yes | Package: | 5 Pcs Per Bundle |
| High Light: | 80mm galvanized steel hose clamp,dust extraction galvanized steel hose clamp,600mm galvanized tube clamps |
||

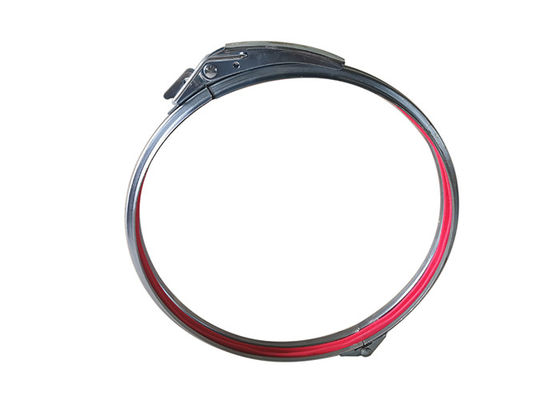

80-600mm Galvanized Pipe Clamps Quick Fit Duct Clips For Dust Extraction System
Duct Clips with hinge and handle. It is equipped with an insert specially designed for duct systems made from 1 and 2 mm steel plate. The clamp are zinc plated and used for fast and tight assembly of the duct systems.
We can supply adapters to connect to other systems such as spiral ducting, Nordfab clipped ducting and most other ductwork systems.
Application of quick fit duct clips:
1.Joinery wood waste extraction systems and the conveying of powders
2.Waste products
3.Particle & fume extraction
Product Design Drawing
Product Dimension Drawing
| D MM | PRODUCT CODE | A MM | H MM | THICKNESS MM |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
FAQ:
1. What is your MOQ?
Our MOQ is 100 pieces
2. What is your delivery time?
The time of delivery is around 15-20 days.
3. What is the shipping port?
We ship the goods via Tianjin Port.
4. What is your payment terms?
We usually accept 30% T/T in advance,70% in the period of shipment. L/C and other payment.
5. What is the location of your company?
Our company is located in the Shijiazhuang, Hebei Province,China.
If you would like to have a visit, you are much welcome.
6. How about the samples?
We could send you the samples,and transport fee should be paid by you.
7. Why choose us?
Genuine products with excellent quality and competitive price；Cooperating with the customers all over the world and knowing the markets very well;After-Services will highly-satisfied.Any problem and feedbacks will be answered in a short of time.
