Product Details:
|
| Product Name: | OEM ODM 150mm Flange Ductwork Wrapped Clamp Rapid Lock Clip Quality Release Galvanized Pipe Clamp | Material: | Galvanized Steel |
|---|---|---|---|
| Packging: | Carton + Pallet / Wooden Box | Size: | 80-600mm Or Non Standard Size |
| Usage: | Ductwork | Type: | Handle And Bolt |
| Seal Ring Material: | TPE-E / EPDM/Silicone | Clamp Width: | 28mm |
| OEM / ODM: | We Can Provide | Payment: | T/T, L/C |
| High Light: | odm galvanised tube clamps,150mm galvanised tube clamps,ductwork galvanised pipe clamps |
||
OEM ODM 150mm Flange Ductwork Wrapped Clamp Rapid Lock Clip Quality Release Galvanized Pipe Clamp
Product Detail:

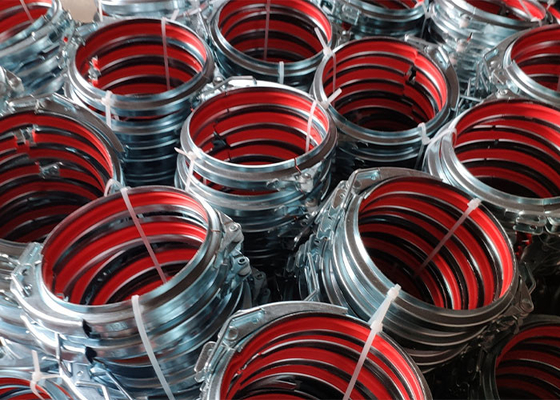

Dust extraction pipe system galvanized steel quick release clamp rapid lock duct ring with red or black gasket
1. The use of quick release clamping ring creates a sealed joint and reduces installation time to almost half that of conventional methods of ducting.
2. It provide optimal protection for pipe applications.
3. The lever mechanism designs are for applications where joints need to be closed and released frequently and quickly.
4. The red or black rubber gasket plays the role of sealing.
5. The duct clamp is made of mild steel or carbon steel with zinc plated, so the anti-corrosion is very high.
Product Features:
1. We are equipped with a pin for each clamp.
2. It is easy to install, and the joint with bolts can be raised 1.0-2.0mm (consult Amy for details)
3. Our factory can customize non-standard sizes
4. Support LOGO printing on products
5. Excellent material and preferential price
| Material | Galvanized steel and Stainless steel 304/316 |
| Production cycle | About 15 day,according the order |
| Type | Handle and bolt |
| OEM/ODM | Yes |
| Payment | T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight |
Product Parament:
| ɸD | PRODUCT CODE | A | H | Thickness |
| mm | mm | mm | mm | |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG180 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG250 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1 |
| 350 | BMG350 | 28 | 8 | 1 |
| 400 | BMG400 | 28 | 8 | 1 |
| 450 | BMG450 | 28 | 8 | 1 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
