Product Details:
|
| Product Name: | Support Bracket Pipe Clamps | Material: | Galvanized Steel |
|---|---|---|---|
| Packging: | Carton + Pallet / Wooden Box | Size: | 80/100/120/125/140/150/160/180/200/225/250/275/300/350/400... |
| Usage: | Ductwork/dust Powder Extraction System | Type: | Bolt |
| OEM / ODM: | We Can Provide | Payment: | T/T, L/C |
| Seal Ring: | Without | Nut Type: | M6/M8/M10 Or Custom |
| High Light: | Galvanized Bolt Support Bracket Pipe Clamps,OEM Galvanized Steel Bracket Clamps,5 Inch Galvanized Support Pipe Clamp |
||

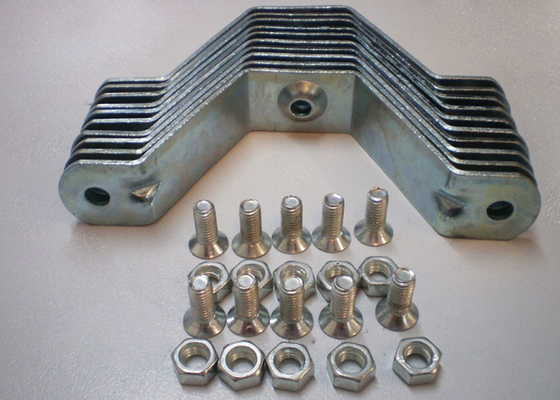

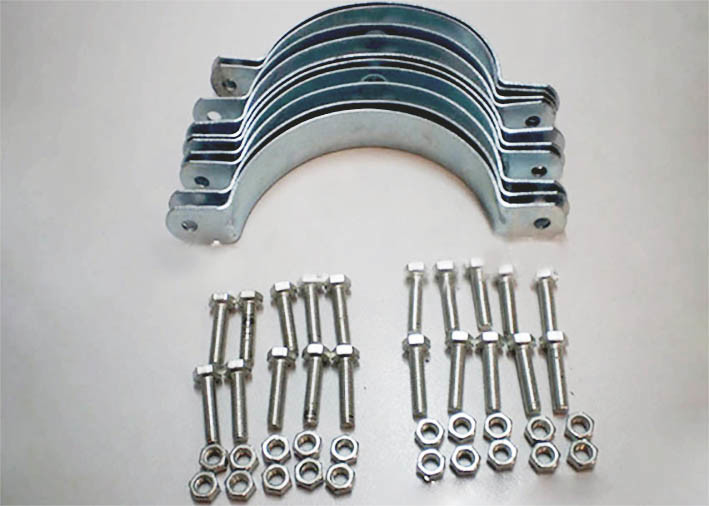

5 Inch Two Pcs Separate Bolt Support Bracket Pipe Clamps Galvanized Pipe Clamp
Product Detail:
Bracket clamps are used to hang and fix pipes. The nut is fixed by full welding, and the bracket is connected to the fixed pipe. The distribution structure of the pipe is saved. Improve work efficiency
Commonly used material is cold-rolled sheet galvanized material
According to the application strength of the pipe size, our support frame pipe clamps are produced with different thickness materials, and 250mm and below use 2.5mm material. 3.0mm material is used for sizes over 250mm.
Usage:
This support pipe clamp can be used for the connection of metal pipes and is suitable for pipes with a thickness of 0.8mm-1.2mm. play a supporting role. The bolts on both sides can adjust the size of the size. Can be used with our ducts.
Product Features:
1. We are equipped with a pin for each clamp.
2. Easy to install
3. Our factory can customize non-standard sizes
4. Excellent material and preferential price
5. We can provide OEM/ODM service.
6. It is used to connect the ventilation pipe with a thickness of 1.0-1.2mm.
| Material | Galvanized steel |
| Production cycle | About 15 day,according the order |
| Type | Bolt |
| OEM/ODM | Yes |
| Payment | T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight |
Product Parament:
| ɸD | PRODUCT CODE | Width | Thickness |
| mm | mm | mm | |
| 80 | BMG80 | 28 | 2.5 |
| 100 | BMG100 | 28 | 2.5 |
| 120 | BMG120 | 28 | 2.5 |
| 125 | BMG125 | 28 | 2.5 |
| 140 | BMG140 | 28 | 2.5 |
| 150 | BMG150 | 28 | 2.5 |
| 160 | BMG160 | 28 | 2.5 |
| 180 | BMG180 | 28 | 2.5 |
| 200 | BMG200 | 28 | 2.5 |
| 225 | BMG225 | 28 | 2.5 |
| 250 | BMG250 | 28 | 2.5 |
| 275 | BMG275 | 28 | 3 |
| 300 | BMG300 | 28 | 3 |
| 315 | BMG315 | 28 | 3 |
| 350 | BMG350 | 28 | 3 |
| 400 | BMG400 | 28 | 3 |
