Product Details:
|
| Material: | Carbon Steel Plate Galvanized | Color: | White Or Silver |
|---|---|---|---|
| Surface Treatment: | No Or Galvanized Custom | Connection: | Seamless |
| Operation: | Manual | Size: | Customized Size |
| Application: | Industry, Construction, Dust Removal, Water, Oil, Gas Transportation.pe | Usage: | Link Pipe |
| Name: | Galvanized Sheet Sealing Clamp Pipe Clamps Fittings Quick Release Tube Clamp With EPDM Rings | Service: | OEM/ODM |
| High Light: | Customizable Quick Release Tube Clamp,EPDM Rings Quick Release Tube Clamp,Customizable Quick Release Pipe Clamp |
||

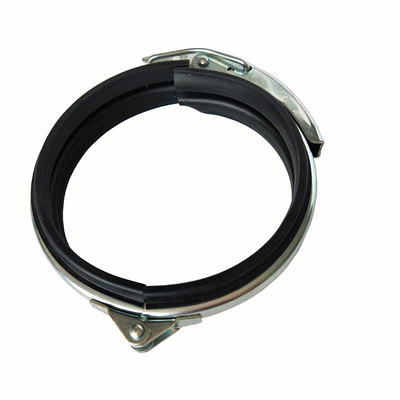

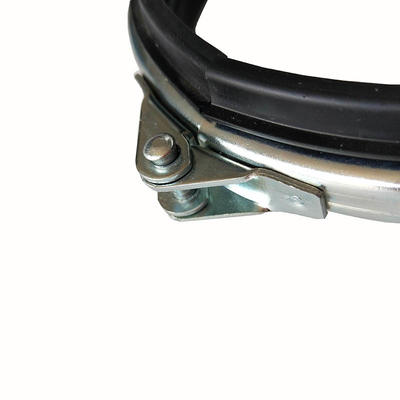

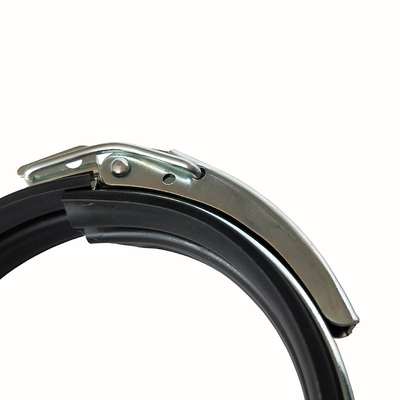

Galvanized Sheet Sealing Clamp Pipe Clamps Fittings Quick Release Tube Clamp With EPDM Rings
We choose cold-rolled steel plate as the raw material for production, first of all, the plate thickness and wear resistance. Long service life. The strength is better than that of galvanized sheet. The notch corrosion resistance of galvanized sheet is better than that of galvanized sheet.
We use blue white galvanized surface treatment. No burr treatment. The black rubber ring covers the whole clamp, with good sealing performance
|
ɸD (mm)
|
Modle
|
width(mm)
|
thickness(mm)
|
|
80
|
LMG80
|
28
|
1
|
|
100
|
LMG100
|
28
|
1
|
|
120
|
LMG120
|
28
|
1
|
|
125
|
LMG125
|
28
|
1
|
|
140
|
LMG140
|
28
|
1
|
|
150
|
LMG150
|
28
|
1
|
|
160
|
LMG160
|
28
|
1
|
|
180
|
LMG180
|
28
|
1
|
|
200
|
LMG200
|
28
|
1
|
|
225
|
LMG225
|
28
|
1
|
|
250
|
LMG250
|
28
|
1
|
|
275
|
LMG275
|
28
|
1
|
|
300
|
LMG300
|
28
|
1
|
|
315
|
LMG315
|
28
|
1.2
|
|
350
|
LMG350
|
28
|
1.2
|
|
400
|
LMG400
|
28
|
1.2
|
|
450
|
LMG450
|
28
|
1.2
|
|
500
|
LMG500
|
28
|
1.2
|
|
550
|
LMG550
|
28
|
1.2
|
|
600
|
LMG600
|
28
|
1.2
|
Application:
Dust removal.Some factories produce a lot of dust in the workshop, which requires special dust removal devices, where the wind flow is large, and the modular pipe system can be used.
Bulk Material Transportation.Some of the factory production process, the need to transport loose particles, especially the small proportion of such as foam plastic grains using modular piping system, low cost, good effect, it is more convenient to maintain.
Chemical Industry,Some chemical industry have cleaning system that the duct need it to connect.
Trade Details
Trade Price FOB Tianjin XingangPayment TermsT/T OR L/CPacking Details Wooden Case Or Pallet Or As Per CustomMOQ1000Pcs,if we have the smples in inventory that can delivery the smplesDelivery Time20days~30days,it depends on the quantity order.
