Product Details:
|
| Product Name: | Air Duct Pipe Seals Quick Fit Duct Clamps Pipe Connection Fittings Galvanized Pipe Clamp | Material: | Carbon Steel |
|---|---|---|---|
| Size: | 80-600mm Or Non Standard Size | Usage: | Ductwork/dust Powder Extraction System |
| Type: | Handle | Seal Ring Material: | EPDM |
| Payment: | T/T, L/C | Thickness: | 2.0mm |
| Executive Standards: | German Standard | Service: | OEM/ODM |
| High Light: | EPDM Gasket Galvanized Pipe Clamp,Galvanized Pipe Clamp 600mm,Air Duct Clamp 600mm |
||

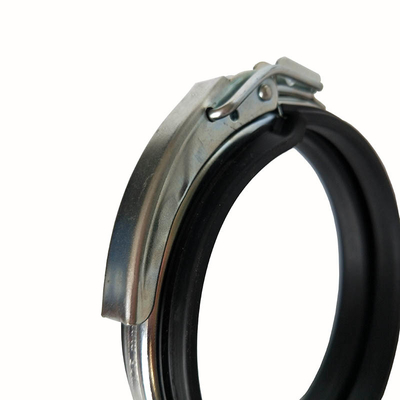

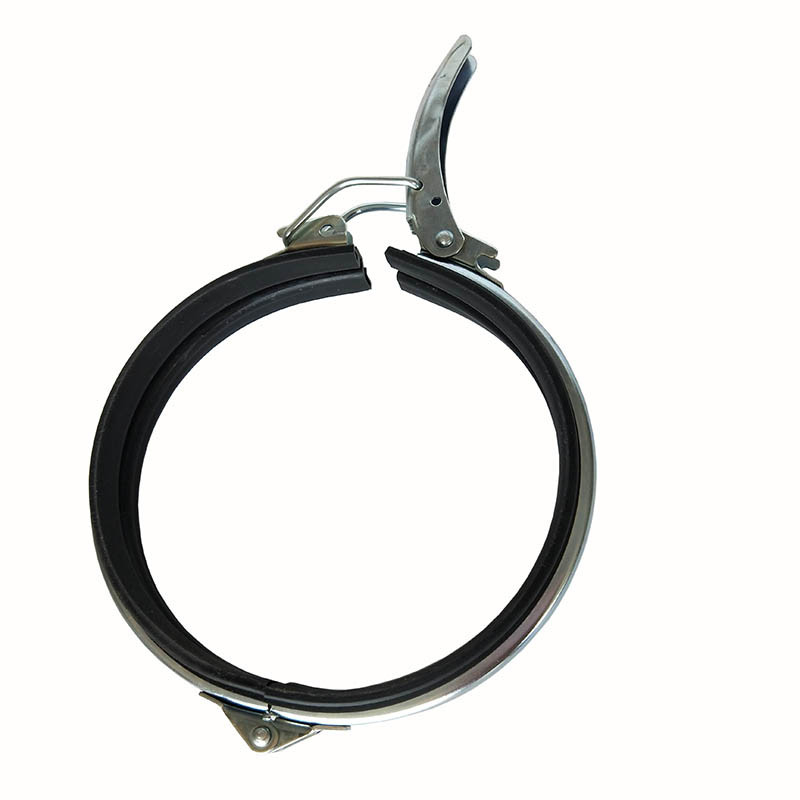

Air Duct Pipe Seals Quick Fit Duct Clamps Pipe Connection Fittings Galvanized Pipe Clamp
Product Detail:
This installation with full lagging can make the connection of the pipes more compact and enhance the sealing between the two pipes. The clamp fits the pipe better to protect the pipe connection.
The pipe clamp is used for all kinds of galvanized steel or thin carbon steel flange pipes (thickness≤2 mm, flange edge turned out 5.5 mm), hoop mounted, standardized, modular.
Thickness of tube clip: 2.0mm.
Gasket Material: EPDM
The standard material of the clamp is cold-rolled galvanized sheet, and the stainless steel material can be customized according to the order quantity. Contact Amy if necessary.
Application:
the clamps are widely used in chemical industry, electric power, textile,metallurgy,petroleum,pharmacy, paper making, food, mining, garbage treatment, construction and other industries.
Feature:
| Material | Carbon steel or stainless steel |
| Production cycle | About 15 day,according the order |
| Type | Handle |
| OEM/ODM | Yes |
| Payment | T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight |
Product Parament:
| NO. | Size:mm | Thickness:mm | Gasket material |
| AW001 | 80 | 2.0 | EPDM |
| AW002 | 100 | 2.0 | EPDM |
| AW003 | 120 | 2.0 | EPDM |
| AW004 | 125 | 2.0 | EPDM |
| AW005 | 140 | 2.0 | EPDM |
| AW006 | 150 | 2.0 | EPDM |
| AW007 | 160 | 2.0 | EPDM |
| AW008 | 180 | 2.0 | EPDM |
| AW009 | 200 | 2.0 | EPDM |
| AW010 | 225 | 2.0 | EPDM |
| AW011 | 250 | 2.0 | EPDM |
| AW012 | 300 | 2.0 | EPDM |
| AW013 | 350 | 2.0 | EPDM |
| ... | ... | ... | ... |
