Product Details:
|
| Commodity: | 150mm Galvanized Steel Ducts Hose Clamp Lever Locking Ring Clamps | Materials: | Carbon Steel |
|---|---|---|---|
| Used: | Connect The Pipe Of Dust | Connection: | Handle |
| Sample: | Avaliable | Diameter: | 80-600mm |
| High Light: | 150mm Locking Ring Clamps,150mm lever hose clamp,Locking Ring Clamps high strength |
||

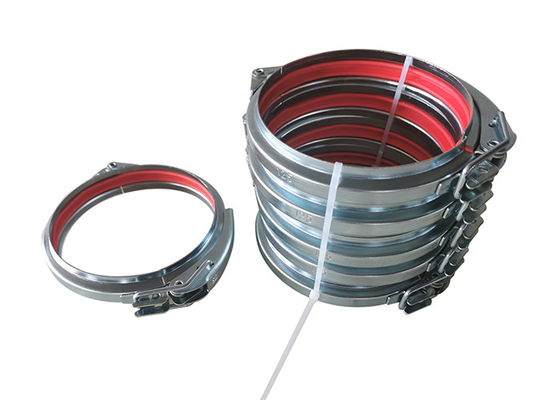

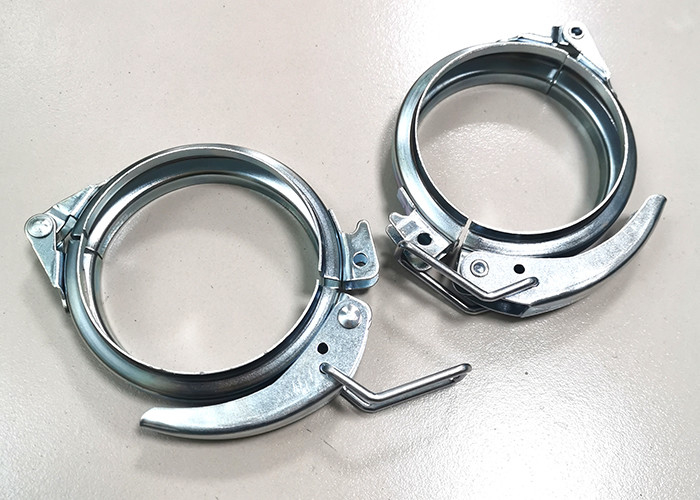

150mm Galvanized Steel Ducts Hose Clamp Lever Locking Ring Clamps
Description:
Specification:
The Product diameter is 80mm~600mm,the Thickness is 1mm~1.2mm, the Inner Rubber Color as requirments of per client.And our factory can provide 10000pcs every month,the mini order is 100pcs.
Usually,the terms payment is T/T or L/C,but the details of payment can discuss.We have standard package with plastic bags,or wooden cases or cartons or as cllent`s request.
Product Dimension Drawing
| D MM | PRODUCT CODE | A MM | H MM | THICKNESS MM |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
