Product Details:
|
| Item Name: | Clamp Together Ductwork | Material: | Stainless Steel, Carbon Steel |
|---|---|---|---|
| Size: | 80-600mm | Application: | Dust Collection System And Ventilation System |
| Temperature: | Normal | Sample: | For Free |
| High Light: | galvanized quick release duct hose clamps,80mm quick release duct hose clamps,ductwork quick release tube clamp |
||
Galvanized Steel Hvac Duct Clamps 80-600mm Clamp Together Ductwork
Introduction of clamp together ductwork:

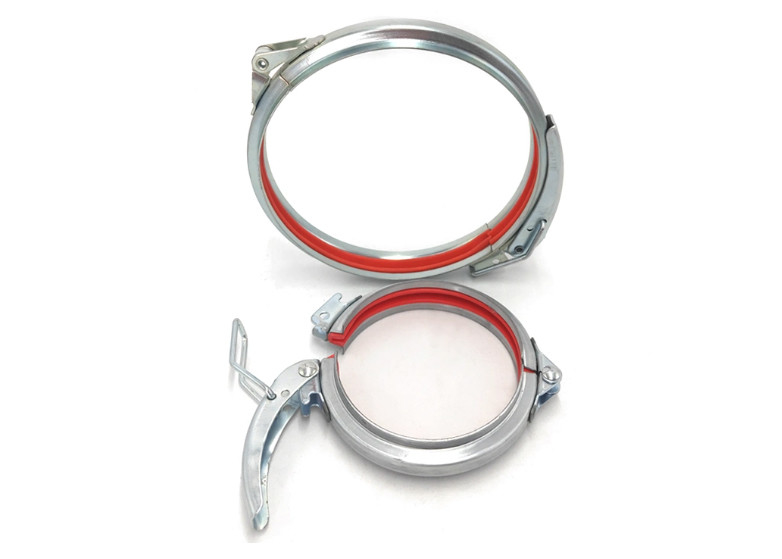

Duct clamps with hinge and handle. It is equipped with an insert specially designed for duct systems made from 1 and 2 mm steel plate. The clamp are zinc plated and used for fast and tight assembly of the duct systems.
We can supply adapters to connect to other systems such as spiral ducting, Nordfab clipped ducting and most other ductwork systems.
Specification of clamp together ductwork:
|
Diameter MM |
PRODUCT CODE |
A MM |
H MM |
THICKNESS MM |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Feature of duct clamps:
1.Quick fit & easy disassemble
2.Diameters range from 75 mm upward to 630mm
3.Galvanized or Stainless Steel
4.Suit for hose, rigid ducting, flange, and pipe
Our advantage:
1, we are factory, can supply you lowest price and best quality
2, we have strong team, professional engineer and sales man, after-sale serive.
3, Before delivery, most products will be inspected to promise customers get qualtiy goods.
4, OEM products are acceptable.
5, except for clamps, we also supply other ductwork fittings.
