Product Details:
|
| Commodity: | Pipe Clamps | Materials: | Carbon Steel, Stainless Steel |
|---|---|---|---|
| Size: | 80-600mm | Band Thickness: | 1.0mm |
| Surface Treatment: | Zinc Plated, Electropolish | Type: | Quick Release Pipe Clamp |
| Technique: | Deepdrawing-Welding | Other Name: | Quick Release Pipe Clamps |
| High Light: | galvanized adjustable quick release pipe clamp,stainless adjustable quick release pipe clamp,180mm quick release tube clamp |
||

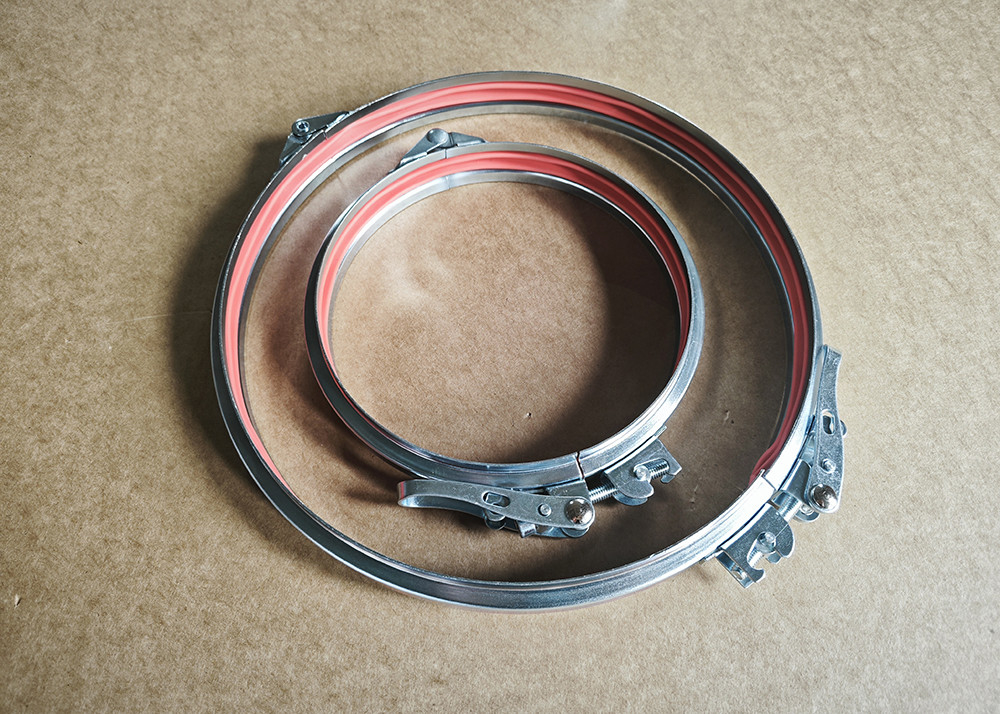

Adjustable Galvanized Stainless Steel Air Duct Quick Pipe Clip Pipe Clamps 80-600mm
Our pipe clamps are the most important component of Quick System ventilation installations. The Duct clamps are used to connect two components - ventilation pipes or fittings of flanged edge. The major advantage of the clamp together ductwork is its quick assembly and disassembly without having to displace the installation – 1 - 3 components can be removed without taking apart the others.
Adjustable Round Duct Clamps:
|
DIAMETER (MM) |
PRODUCT CODE |
A (MM) |
H (MM) |
THICKNESS (MM) |
| 80 | LMG80 | 28 | 8 | 1 |
| 100 | LMG100 | 28 | 8 | 1 |
| 120 | LMG120 | 28 | 8 | 1 |
| 125 | LMG125 | 28 | 8 | 1 |
| 140 | LMG140 | 28 | 8 | 1 |
| 150 | LMG150 | 28 | 8 | 1 |
| 160 | LMG160 | 28 | 8 | 1 |
| 180 | LMG160 | 28 | 8 | 1 |
| 200 | LMG200 | 28 | 8 | 1 |
| 225 | LMG225 | 28 | 8 | 1 |
| 250 | LMG225 | 28 | 8 | 1 |
| 275 | LMG275 | 28 | 8 | 1 |
| 300 | LMG300 | 28 | 8 | 1 |
| 315 | LMG315 | 28 | 8 | 1.2 |
| 330 | LMG330 | 28 | 8 | 1.2 |
| 350 | LMG350 | 28 | 8 | 1.2 |
| 400 | LMG400 | 28 | 8 | 1.2 |
| 450 | LMG450 | 28 | 8 | 1.2 |
| 500 | LMG500 | 28 | 8 | 1.2 |
| 550 | LMG550 | 28 | 8 | 1.2 |
| 600 | LMG600 | 28 | 8 | 1.2 |
Another type clamps, Quick Release Pipe Clamps
|
DIAMETER (MM) |
PRODUCT CODE |
A (MM) |
H (MM) |
THICKNESS (MM) |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Details of Duct Clamps:
Package of duct clamps:
About Shijiazhuang Woodoo Company:
We are the leading manufacturer and develop a series of round duct & fittings for industy dust collection system of ship and buiding . At the same time, we also supply modular ducting for ventilation system.
Products for Dust collection system including: pressed bend, pneumatic sliding damper, manual sliding damper ,duct clamps, wide/slim pull rings and so on
Products for Ventilation system products including: half elbow, duct reducer, pressed collar saddle, Tee piece and so on.
Our advantage: factory price, fast delivery and good service.
For more information, please contact me.
