Product Details:
|
| Commodity: | Low Pressure Conveying Spiral Duct Clamp Adjustable Tube Clamp | Clamp Diameter: | 80-600mm |
|---|---|---|---|
| Clamps Material: | Carbon Steel, Stainless Steel | Finish: | Zinc Plated, Electropolish |
| Thickness: | 1.0mm | Item Name: | Quick Release Pipe Clamps |
| Sample: | Can Be Supplied To Customer For Free | ||
| High Light: | low pressure conveying spiral duct clamp,120mm spiral duct clamp,120mm adjustable tube clamp |
||

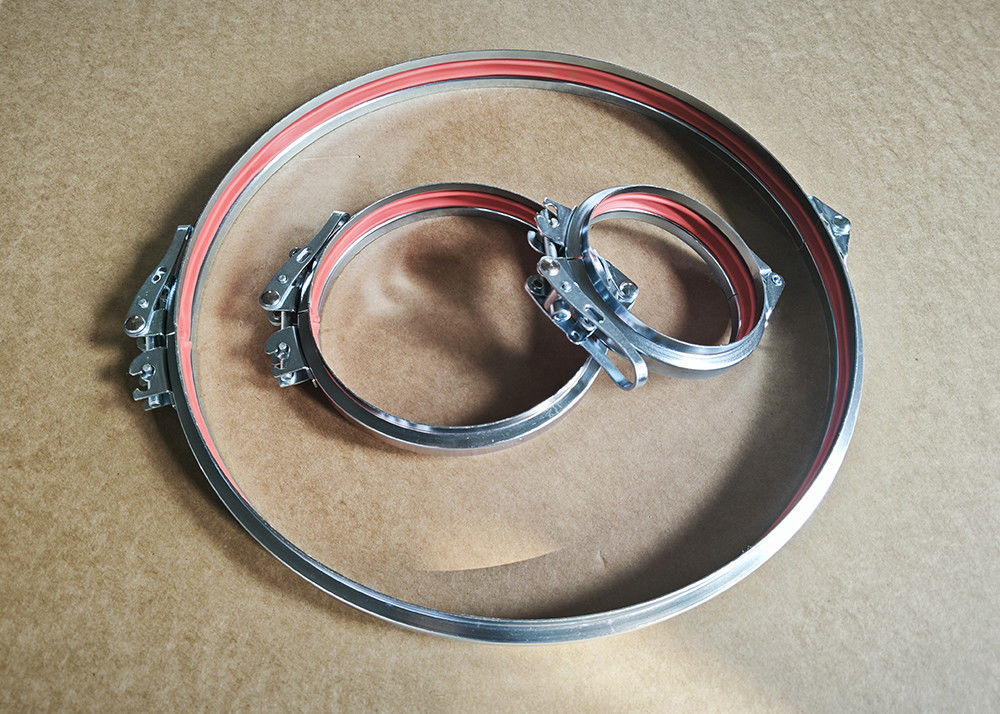

Low Pressure Conveying Spiral Duct Clamp Adjustable Tube Clamp
Diameter:80-600mm
Material: stainless steel 304
Thickness: 0.8-1.0mm
Package: 5 pcs one bundle, for small quantity, they are put in carton, for large quantity, they are put in crate
OEM service: acceptable
Sample: for free
Adjustable Round Duct Clamps:
|
DIAMETER (MM) |
PRODUCT CODE |
A (MM) |
H (MM) |
THICKNESS (MM) |
| 80 | LMG80 | 28 | 8 | 1 |
| 100 | LMG100 | 28 | 8 | 1 |
| 120 | LMG120 | 28 | 8 | 1 |
| 125 | LMG125 | 28 | 8 | 1 |
| 140 | LMG140 | 28 | 8 | 1 |
| 150 | LMG150 | 28 | 8 | 1 |
| 160 | LMG160 | 28 | 8 | 1 |
| 180 | LMG160 | 28 | 8 | 1 |
| 200 | LMG200 | 28 | 8 | 1 |
| 225 | LMG225 | 28 | 8 | 1 |
| 250 | LMG225 | 28 | 8 | 1 |
| 275 | LMG275 | 28 | 8 | 1 |
| 300 | LMG300 | 28 | 8 | 1 |
| 315 | LMG315 | 28 | 8 | 1.2 |
| 330 | LMG330 | 28 | 8 | 1.2 |
| 350 | LMG350 | 28 | 8 | 1.2 |
| 400 | LMG400 | 28 | 8 | 1.2 |
| 450 | LMG450 | 28 | 8 | 1.2 |
| 500 | LMG500 | 28 | 8 | 1.2 |
| 550 | LMG550 | 28 | 8 | 1.2 |
| 600 | LMG600 | 28 | 8 | 1.2 |
Feature of Duct Clamps:
The Custom-made Quick Release Pipe Clamps are made in Deepdrawing and Welding.The surface color is sliver and the material of product is Stainless Steel so the antiseptic is extremely good.The type form 80mm~600mm. According to the customer`s requirements and design drawing ,our factory make the the production and guarantee the quality.The product applied to connect the pipe of dust and pollution cleaning, powder in chemical industry and furniture factory and so on.
Package of duct clamps:
Trade Information:
| Payment Term | 30% Deposit By T/T Or L/C At Sight |
| Trade Term | FOB Tianjin Xingang,CIF |
| Delivery Time | If stock have we maybe delivery it in 3~5 days or 25~50 days after receiving the deposit.It depends on the quantity order. |
| MOQ | If you are trial order,it’s no MOQ,otherwise it’s 1000pcs. |
About Shijiazhuang Woodoo Company:
We are the leading manufacturer and develop a series of round duct & fittings for industy dust collection system of ship and buiding . At the same time, we also supply modular ducting for ventilation system.
Products for Dust collection system including: pressed bend, pneumatic sliding damper, manual sliding damper ,duct clamps, wide/slim pull rings and so on
Products for Ventilation system products including: half elbow, duct reducer, pressed collar saddle, Tee piece and so on.
Our advantage: factory price, fast delivery and good service.
