Product Details:
|
| Commodity: | Quick Release Duct Rapid Lever Clamp | Clamp Size: | 80-600mm |
|---|---|---|---|
| Material: | Carbon Steel, Stainless Steel | Finsih: | Zinc Plated |
| Thickness: | 1.0mm | Item Name: | Quick Release Pipe Clamps |
| Label: | Accept Customized | Sample: | Avaliable |
| High Light: | 300mm quick release pipe clamp,dust collection quick release pipe clamp,300mm quick release tube clamp |
||

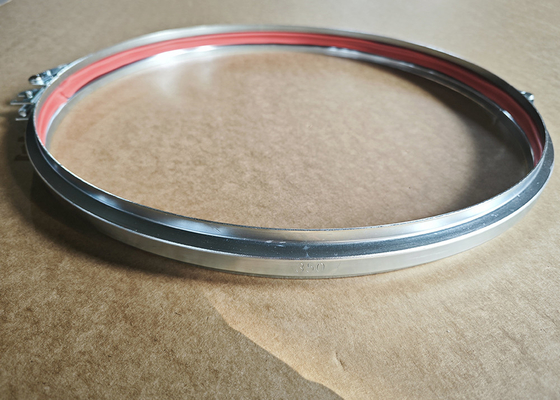

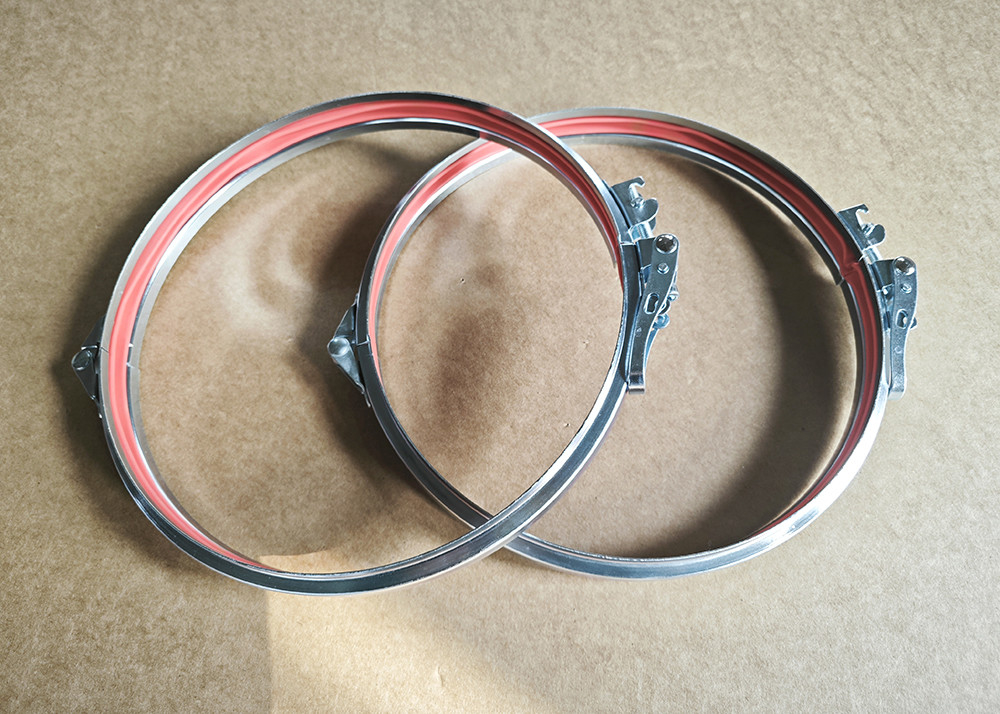

300mm Dust collection system round pipe duct clamp quick release duct rapid lever clamp
We produce clips, flanges, clamps and sliding damper etc. These parts are often used to
strengthen the connection between ducts and fittings, or makes the installation much easier. so they are an important part in duct connection.
The specification of duct clamp:
1, Material: carbon steel, stainless steel
2, Diameter Range:80mm-600mm, customized sizes are acceptable.
3,Surface treatment: zinc plated
4,Application: Duct rapid lever clamps are the most important component of Quick System ventilation installations.
Adjustable Round Duct Clamps:
|
DIAMETER (MM) |
PRODUCT CODE |
A (MM) |
H (MM) |
THICKNESS (MM) |
| 80 | LMG80 | 28 | 8 | 1 |
| 100 | LMG100 | 28 | 8 | 1 |
| 120 | LMG120 | 28 | 8 | 1 |
| 125 | LMG125 | 28 | 8 | 1 |
| 140 | LMG140 | 28 | 8 | 1 |
| 150 | LMG150 | 28 | 8 | 1 |
| 160 | LMG160 | 28 | 8 | 1 |
| 180 | LMG160 | 28 | 8 | 1 |
| 200 | LMG200 | 28 | 8 | 1 |
| 225 | LMG225 | 28 | 8 | 1 |
| 250 | LMG225 | 28 | 8 | 1 |
| 275 | LMG275 | 28 | 8 | 1 |
| 300 | LMG300 | 28 | 8 | 1 |
| 315 | LMG315 | 28 | 8 | 1.2 |
| 330 | LMG330 | 28 | 8 | 1.2 |
| 350 | LMG350 | 28 | 8 | 1.2 |
| 400 | LMG400 | 28 | 8 | 1.2 |
| 450 | LMG450 | 28 | 8 | 1.2 |
| 500 | LMG500 | 28 | 8 | 1.2 |
| 550 | LMG550 | 28 | 8 | 1.2 |
| 600 | LMG600 | 28 | 8 | 1.2 |
Feature of Duct Clamps:
Speed Install, With Inner Rubber Galvanized Pipe Clamp With Rapid Lock Used All Kinds Of Tube can quickly connect the ducts of all kinds by handle.You only need to push the handle which the ducts are locked.
Good Sealing,The clamps With Inner Rubber Galvanized Pipe Clamp With Rapid Lock Used All Kinds Of Tube have high sealing because inner rubber seal.
Strong Anti corrosion,Because the With Inner Rubber Galvanized Pipe Clamp With Rapid Lock Used All Kinds Of Tube is stainless steel,so the anti corrosion is very high
Custom Inner Rubber Ring:According to custom's requirements ,we use all kinds of material for various industry.
Package of duct clamps:
Trade Information:
| Payment Term | 30% Deposit By T/T Or L/C At Sight |
| Trade Term | FOB Tianjin Xingang,CIF |
| Delivery Time | If stock have we maybe delivery it in 3~5 days or 25~50 days after receiving the deposit.It depends on the quantity order. |
| MOQ | If you are trial order,it’s no MOQ,otherwise it’s 1000pcs. |
