Product Details:
|
| Product Name: | Quick Release Rapid Lock Duct Ring Round Duct Pipe Clamp With Black Rubber | Dimension: | 80mm,100mm,120mm,140mm,150mm,160mm,200mm,250mm,300mm,500mm Etc |
|---|---|---|---|
| Function: | Used For Dust Extraction System | Standard Or Nonstandard: | Standard |
| Samples: | For Free | Feature: | Easy To Install |
| Highlight: | Quick Release Black Rubber Pipe Clamp,Rapid Lock Round Duct Pipe Clamp,Black Rubber Rapid Lock Pipe Clamp |
||

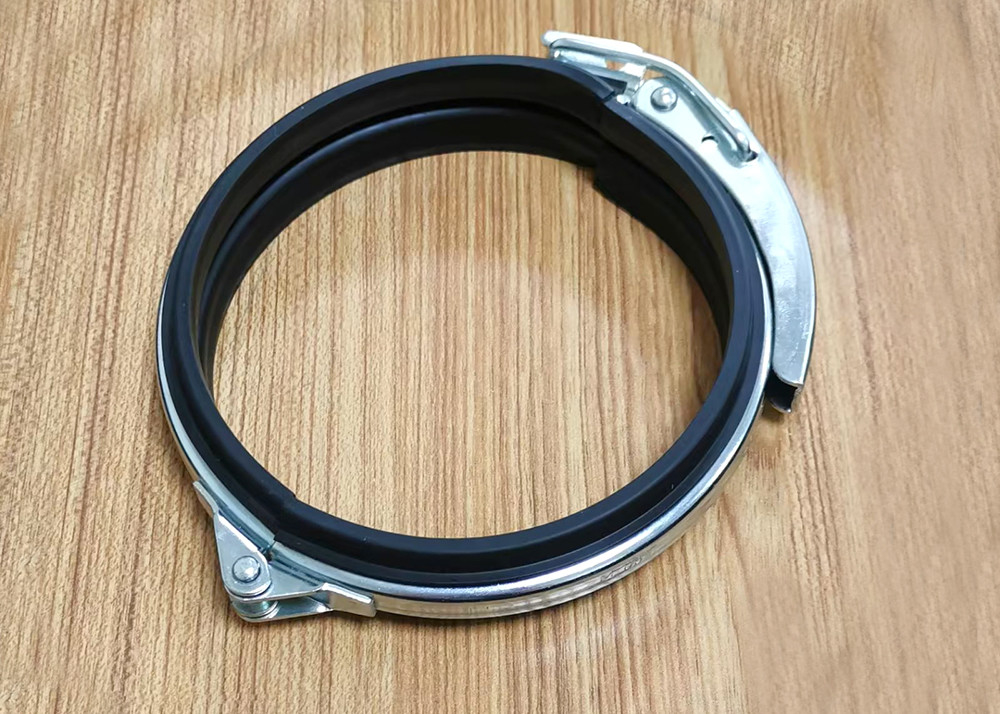

Quick Release Rapid Lock Duct Ring Round Duct Pipe Clamp With Black Rubber
We produce clips, flanges, clamps and sliding damper etc. These parts are often used to
strengthen the connection between ducts and fittings, or makes the installation much easier. so they are an important part in duct connection.
The specification of rapid lock ring:
| Commodity | Rapid Lock Ring |
| Diameter | 80mm-600mm |
| Material | stainless steel 304, Carbon Steel |
| Thickness | 1.0mm,1.2mm |
| Surface | Zinc Plated |
| Feature of quick release pipe clamps | 1.Quick fit & easy disassemble 2.Diameters range from 75 mm upward to 630mm 3.Galvanized or Stainless Steel 4.Suit for hose, rigid ducting, flange, and pipe |
| Application of quick release pipe clamps | - Joinery wood waste extraction systems and the conveying of powders - Waste products - Particle & fume extraction |
Specification of Quick Release Pipe Clamps
|
DIAMETER (MM) |
PRODUCT CODE |
A (MM) |
H (MM) |
THICKNESS (MM) |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Package of duct clamps:
