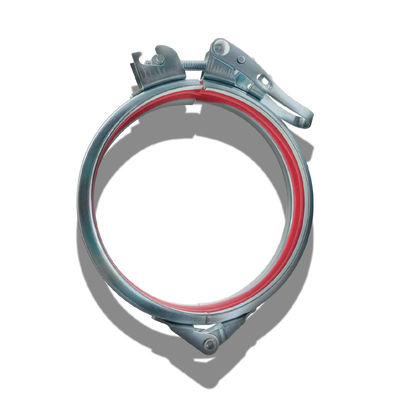

Stainless Steel 304 Quick Release Pipe Clamp with 1.0mm/1.2mm Thickness and 28mm Width for HVAC Systems

Stainless Steel 304 Quick Release Pipe Clamp with 1.0mm/1.2mm Thickness and 28mm Width for HVAC Systems
Stainless Steel 304 Quick Release Pipe Clamp with 1.0mm/1.2mm Thickness and 28mm Width for HVAC Systems
Stainless Steel 304 Quick Release Pipe Clamp with 1.0mm/1.2mm Thickness and 28mm Width for HVAC Systems Stainless Steel 304 Quick Release Pipe Clamp with 1.0mm/1.2mm Thickness and 28mm Width for HVAC Systems

Large Image :  Stainless Steel 304 Quick Release Pipe Clamp with 1.0mm/1.2mm Thickness and 28mm Width for HVAC Systems

Product Details:
Place of Origin: CHINA
Brand Name: WD
Model Number: WD25-A02
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: Carton+pallet/wooden crate
Delivery Time: 35days
Payment Terms: L/C,T/T
Supply Ability: 15000pcs/month
Contact Now

Stainless Steel 304 Quick Release Pipe Clamp with 1.0mm/1.2mm Thickness and 28mm Width for HVAC Systems

Description
Highlight:

Stainless Steel 304 Quick Release Pipe Clamp

,

1.0mm/1.2mm Thickness Quick Release Pipe Clamp

,

28mm Width Quick Release Pipe Clamp

Galvanized Sheet Stainless Steel 304 Quick Release Pipe Clamp
Quick Connect Clamp Tube Clips for HVAC Systems
These pipe clamps are essential accessories for HVAC systems, designed for secure pipe connections. After docking two flange pipes, the clamps are fastened and tightened using the central bolt to adjust diameter tightness. This design eliminates the need for separate flange welding and bolt drilling, offering easier installation, cleaning, and pipeline disassembly compared to traditional bolt connections.
Product Features
  • Simplified installation and disassembly for maintenance
  • Adjustable diameter tightness via central bolt
  • Superior to traditional flange-and-bolt connections
  • Easy cleaning access for pipeline maintenance
Product Specifications
  • Pipe Material: Galvanized sheet or stainless steel 304
  • Gasket Material: TPE-E/Silicone gasket
  • Clamp Thickness: 1.0mm/1.2mm
  • Clamp Width: 28mm
  • Size Range: 82mm-600mm (custom sizes available)
  • Packaging: Carton+pallet or wooden box
Stainless Steel 304 Quick Release Pipe Clamp with 1.0mm/1.2mm Thickness and 28mm Width for HVAC Systems 0 Stainless Steel 304 Quick Release Pipe Clamp with 1.0mm/1.2mm Thickness and 28mm Width for HVAC Systems 1
Product Dimensions
ɸD (mm) Product Code A (mm) H (mm) Thickness (mm)
80BMG802881
100BMG1002881
120BMG1202881
125BMG1252881
140BMG1402881
150BMG1502881
160BMG1602881
180BMG1802881
200BMG2002881
225BMG2252881
250BMG2502881
275BMG2752881
300BMG3002881
315BMG3152881.2
350BMG3502881.2
400BMG4002881.2
450BMG4502881.2
500BMG5002881.2
550BMG5502881.2
600BMG6002881.2
