Product Details:
|
| Product Name: | 125mm Diameter Electric Air Damper , Galvanized Steel And Stainless Steel | Type: | HVAC Systems,Ventilation,Air Conditioning |
|---|---|---|---|
| Apply For: | Building,HVAC SYSTEM,controlling The Airflow Inside Smoke-fittings And Round Ductwork.,Duct,Air Conditioning Ventilation System | Thickness: | 0.5-1.2mm Or Customized |
| Character: | Durable,HVAC System,Easy,hign Efficiency,control The Air Volume | Oem: | Available |
| Material: | Galvanized Steel，stainless Steel | ||
| High Light: | industrial air dampers,air conditioning duct dampers |
||

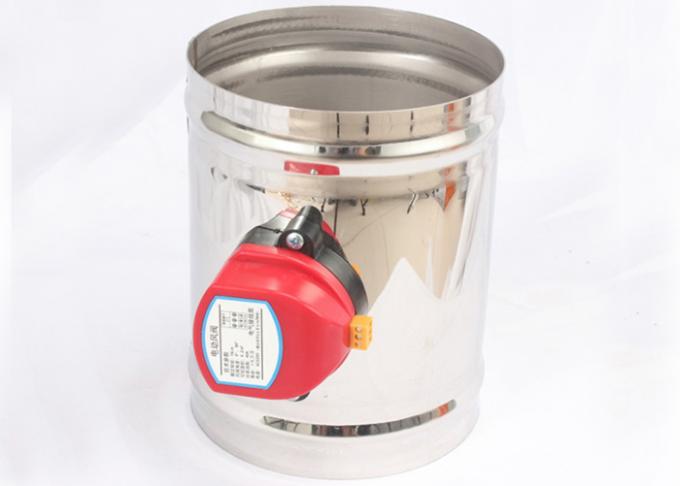

125mm Diameter Electric Air Damper , Galvanized Steel and Stainless Steel
Description:
Size: 100mm, 150mm, 200mm,250mm,300mm, 315mm... (other sizes optional according to customer's requirement); Warmed by special thermal material with sound resistant feartures; Painted in high temperature with green colour ; Customized size available
Electric Air Damper Specifications:
| Commodity | Outer Diameter | Heigh | Flange width | Remark |
| Electric Air Damper | 51mm | 150mm | 25mm | silicone seal |
| Electric Air Damper | 63mm | 150mm | 25mm | silicone seal |
| Electric Air Damper | 75mm | 150mm | 25mm | silicone seal |
| Electric Air Damper | 80mm | 150mm | 25mm | silicone seal |
| Electric Air Damper | 100mm | 150mm | 25mm | silicone seal |
| Electric Air Damper | 125mm | 190mm | 25mm | silicone seal |
| Electric Air Damper | 150mm | 190mm | 25mm | silicone seal |
| Electric Air Damper | 200mm | 190mm | 30mm | silicone seal |
| Electric Air Damper | 250mm | 240mm | 30mm | silicone seal |
| Electric Air Damper | 300mm | 290mm | 30mm | silicone seal |
| Electric Air Damper | 350mm | 340mm | 30mm | silicone seal |
| Electric Air Damper | 400mm | 390mm | 30mm | silicone seal |
Electric Air Damper Feature:
1. It is a volume controller installed in the air duct of air-conditioning and ventilation systems.

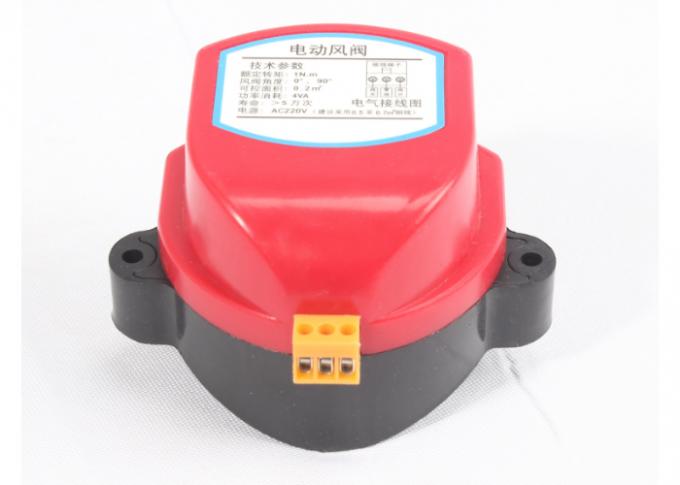

2. The open degree of blades is controlled by manual actuator or electric motor.
3. The material could be sprayed galvanized sheet or aluminum alloy or stainless steel.
4. It is applied to air conditioning and air purification systems
