Product Details:
|
| Product Name: | Type V Band Exhaust Clamp | Material: | Stainless Steel, SS304 Or Other Material |
|---|---|---|---|
| Usage: | Heavy Duty | Size: | 1.5-6 Inch |
| Application: | Exhaust Clamp | Shape: | Round |
| Screw Type: | Square | Structure: | T Clamp |
| High Light: | auto vehicle parts,car exhaust system |
||
Product Detalls:

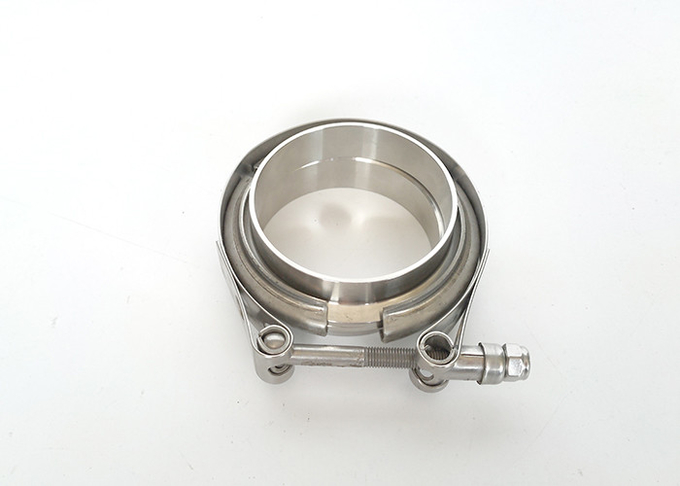

The v band pipe clamp adopts high quality stainless steel or galvanized thin steel belt and v-ring sealing connection.clamp overall polishing, bright without burr.Special technology bending forming, with a unique anti-loose spring design, and various complex working conditions can be tight hose, sealing is very strong.
The V-band clamp connections are preferred in exhaust system construction or with downpipes. It allow a perfect connection of exhaust pipes, which is fast assembled and disassembled. Because of their easy applicability these separation points are largely in use.Our high quality V band clamps are available in a wide variety of configurations to meet your fastening requirements.Those includes standard V band clamp,channel tongue,Floating Bridge styles,spring loaded Clamps and made-to-order.It can be adjusted slightly, so that the flange and flange and seal between the adjustment and alignment of uniform force hold tight, light and fast body.
| size(inch) | Flange inner diameter(mm) | Outer diameter of exhaust pipe(mm) | Material |
| 1.5 | 38.9 | 38.1 | SS304 |
| 1.75 | 45.3 | 44.5 | SS304 |
| 2 | 51.6 | 50.8 | SS304 |
| 2.25 | 57.9 | 57.1 | SS304 |
| 2.5 | 64.3 | 63.5 | SS304 |
| 2.75 | 70.6 | 69.8 | SS304 |
| 3 | 77 | 76.2 | SS304 |
| 3.25 | 83.3 | 82.5 | SS304 |
| 3.5 | 89.7 | 88.9 | SS304 |
| 3.75 | 96.1 | 95.6 | SS304 |
| 4 | 102.4 | 101.6 | SS304 |
| 4.5 | 115.1 | 114.3 | SS304 |
| 5 | 127.8 | 127 | SS304 |
| 6 | 153.2 | 152.4 | SS304 |
Features:
Rich configuration on both T Bolt and Nut and match various application even critical like hih temperature, high vibration.
1. Whole stainless steel and resistant to corrosion;
2. Positive sealing integrity;
3. Easy assembly and disassembly;
4. High strength and reliable;
5. Good welding and physical performance .Outer diameter of exhaust pipe
6. Bending by special technology means, it has a unique anti-loosening spring design.
7. After the inner ring is tightened, the hose is rounded to ensure that the hose can hold the hose tightly under elastic deformation and various complex working conditions, with strong sealing.
Application:
The V-Band Clamps/Couplings offer effective fastening solutions in exhaust systems,including filter frame, turbocharging system, exhaust system and industrial application which need flange connection. remove intercooler systems and turbo parts, such as charge piping, intake pipes, diesel engines, turbochargers, and heavy-duty exhaust systems.Etc
